Description
Outdoor Fixed Installation Transparent LED Display
1000TOF series outdoor transparent LED screen, light&slim, high transparency, up to 70%.The LED lamp & PCB are fully sealed by silicon,
anti-dust and anti-collision, IP65, adapt to harsh weather.Easy installation, support front&rear service.
Outdoor 1000x500mm Rental Transparent LED Display Parameter
| Pixel Pitch (mm) | P3.91-7.82 | P5.2-10.4 | P10.4 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 |
| Density (Pixels/㎡) | 32,768 | 18432 | 9216 |
| Cabinet Resolution (Pixel) | 256×64 | 192×48 | 96×48 |
| Module Resolution (Pixel) | 128×32 | 96×24 | 48×24 |
| Module Size (mm) | 500×250 | 500×250 | 500×250 |
| Driving Mode (Duty) | 1/8 | 1/4 | 1/2 |
| Cabinet Size (mm) | 1000×500 | 1000×500 | 1000×500 |

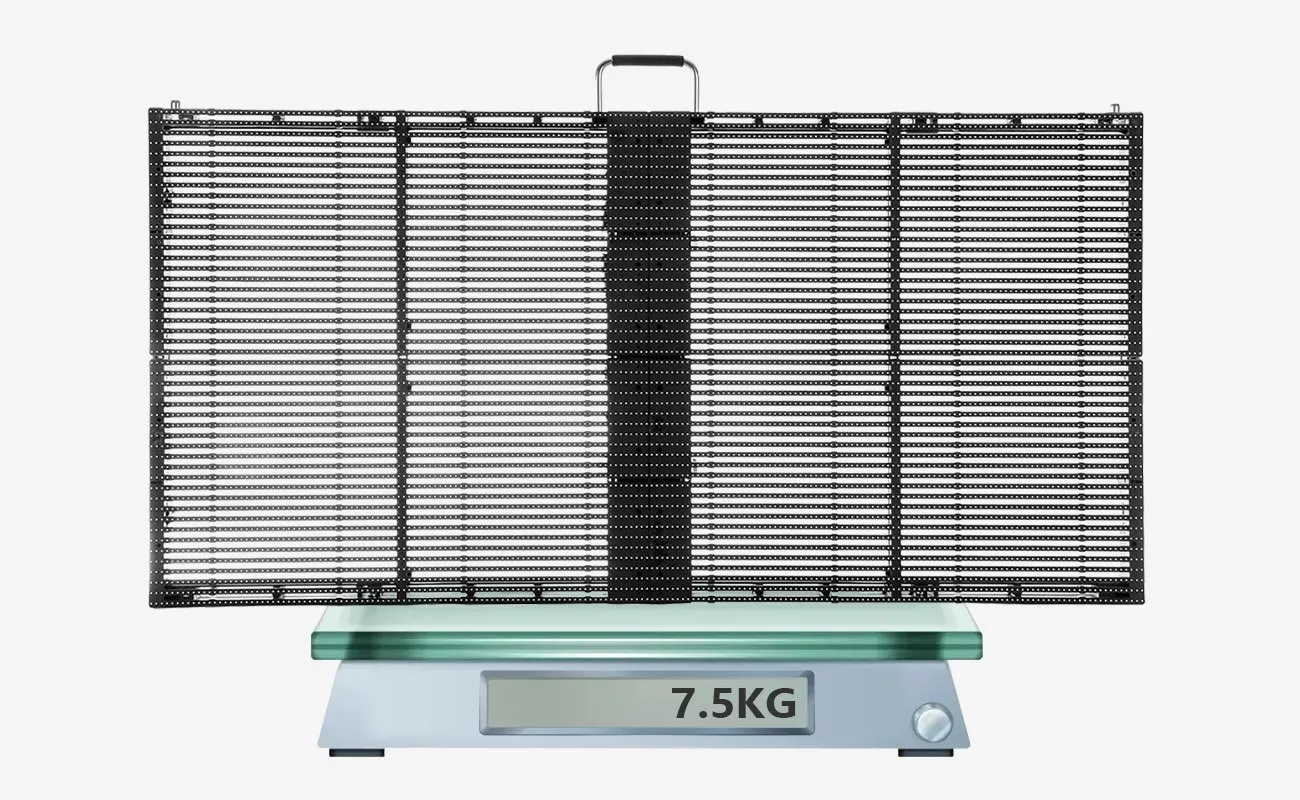

| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | 4500 | 4500 | 4500 |
| Transparency | 53 | 58 | 70 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Operation Power | AC100-240V | AC100-240V | AC100-240V |
| Maximum power (W) | 800 | 800 | 800 |
| Average power (W) | 260 | 260 | 260 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
70% High Transparency
70% transparency, greatly reduce wind resistance, better cooling effect, without affecting the outdoor vision
Easy to Install
Stacking, hanging and fixed installations are supported.
Super Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
