Description
500×1000 Professional Rental LED Display 1000 Series
1000 Series has two quick lock devices on the left and right sides, which can ensure faster assembly speed and better screen flatness.
It also has anti-collision feet at the bottom of the cabinet to protect of the LED module.
500 and 1000 Can be installed together up and down , left and right.
Indoor 500x1000mm Rental LED Display 500 Series Parameter
| Pixel pitch | P1.95 | P2.604 | P2.976 | P3.91 |
| Module size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Module pixels (dots) | 128×128 | 96×96 | 84×84 | 64×64 |
| Scanning mode (S) | 1/32 | 1/32 | 1/28 | 1/16 |
| Physical density (dots) | 262,144 | 147,928 | 112,896 | 65,536 |
| LED packaging | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Refresh frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| White balance (CD/㎡) | 800 | 750 | 800 | 800 |
| Cabinet size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet pixels (dots) | 256×512 | 192×384 | 168×336 | 128×256 |
| Cabinet weight (Kg) | 11 | 11 | 11 | 11 |
| Average power (W) | 160 | 160 | 160 | 192 |
| Maximum power (W) | 480 | 480 | 480 | 576 |
| Viewing distance (°） | 140 | 140 | 140 | 140 |
| The Best View （M） | 2-20 | 3-20 | 3-20 | 4-30 |
| Working voltage （V) | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Working temperature (℃） | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
Outdoor 500x1000mm Rental LED Display 500 Series Parameter
| Pixel pitch | P2.604 | P2.976 | P3.91 | P4.81 |
| Module size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Module pixels (dots) | 96×96 | 84×84 | 64×64 | 52×52 |
| Scanning mode (S) | 1/16 | 1/21 | 1/16 | 1/13 |
| Physical density (dots) | 147,928 | 112,896 | 65,536 | 43,264 |
| LED packaging | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Refresh frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| White balance (CD/㎡) | 4500 | 4500 | 5000 | 4500 |
| Cabinet size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet pixels (dots) | 192×384 | 168×336 | 128×256 | 104×104 |
| Cabinet weight (Kg) | 12.5 | 12.5 | 12.5 | 12.5 |
| Average power (W) | 240 | 240 | 240 | 190 |
| Maximum power (W) | 720 | 720 | 720 | 560 |
| Viewing distance (°） | 140 | 140 | 140 | 140 |
| The Best View （M） | 3-20 | 3-20 | 4-30 | 4-30 |
| Working voltage （V) | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Working temperature (℃） | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 |
High Precision Curve Lock
High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.
Free Splicing
500 series and 1000 series can be installed together up and down, left and right.
Lightweight and Thin
1000 series LED display cabinet weighs 13KG/pc, easy to operate: one person to install, disassemble and maintain.

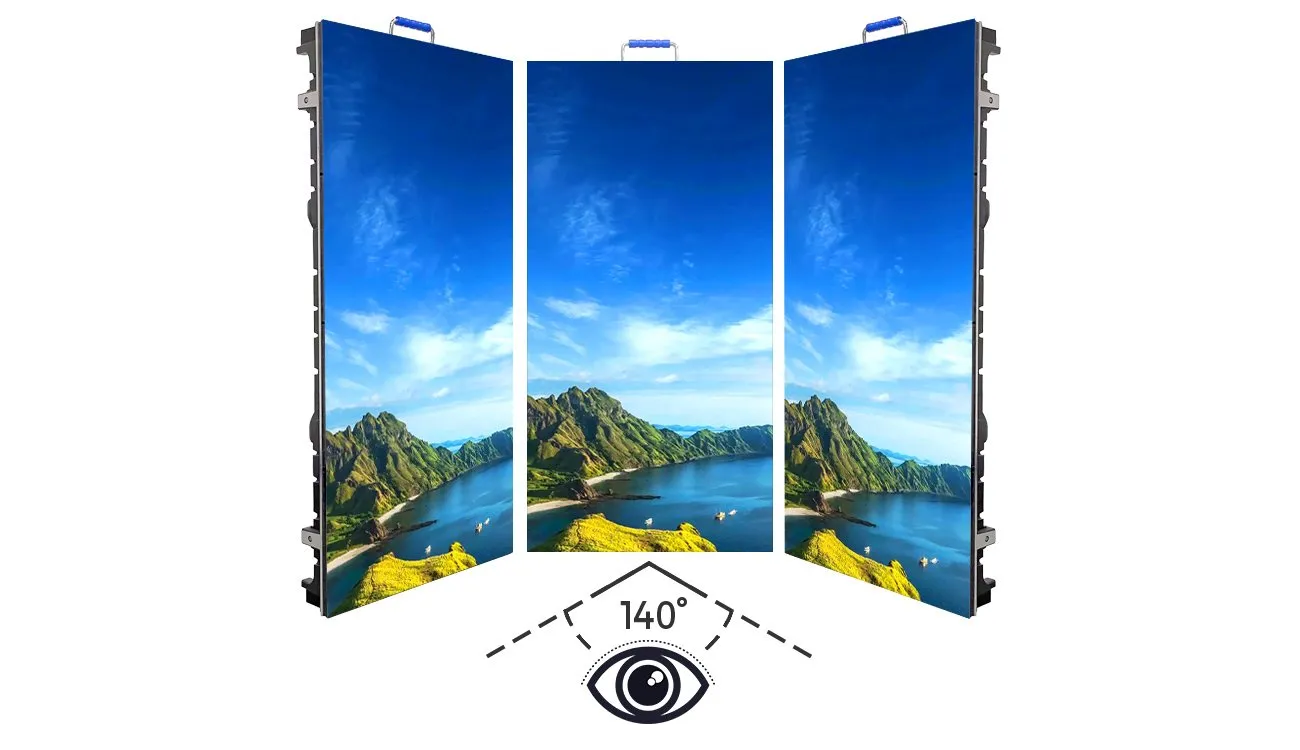

Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
