HH1920iP5 Indoor Foldable Poster LED Display
HH1920iP5 series is a double-sided foldable poster LED screen that is lightweight, portable, and space-saving, making it easy to move and install. It supports front-accessible design for more efficient maintenance. Its GOB packaging provides excellent protection, making it suitable for a variety of commercial display scenarios.

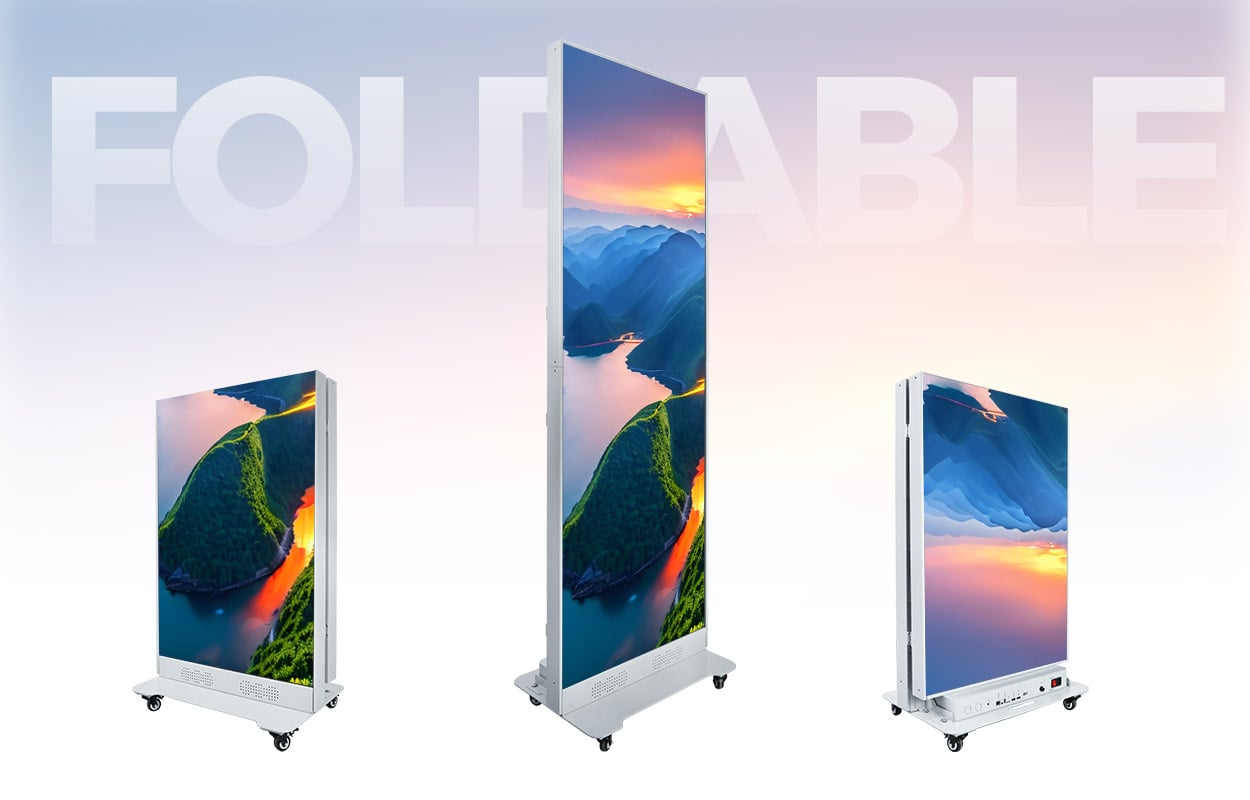

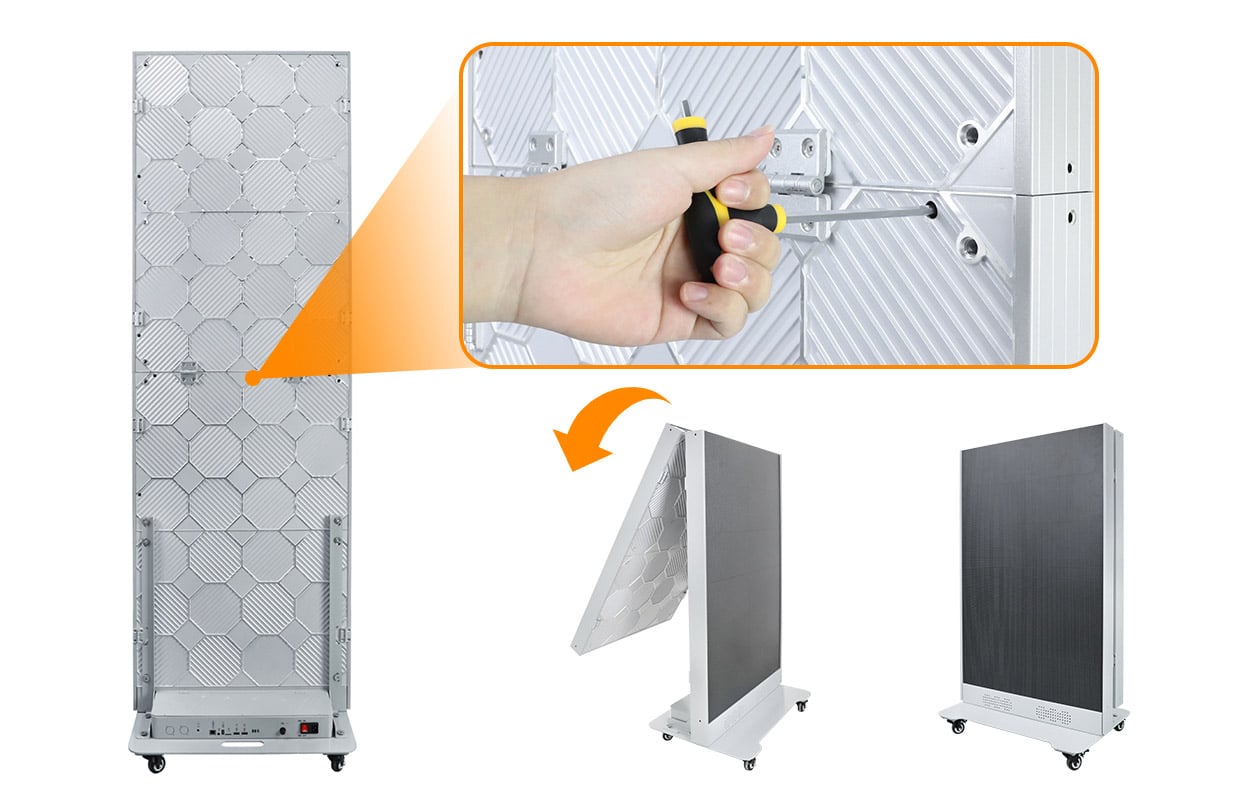

Folding Design
HH1920iP5 foldable poster LED screen halves its size when folded, significantly improving transportation and storage efficiency. The dual-sided display supports independent content playback or seamlessly joins to create a unified display, making it flexible and adaptable to various commercial spaces.

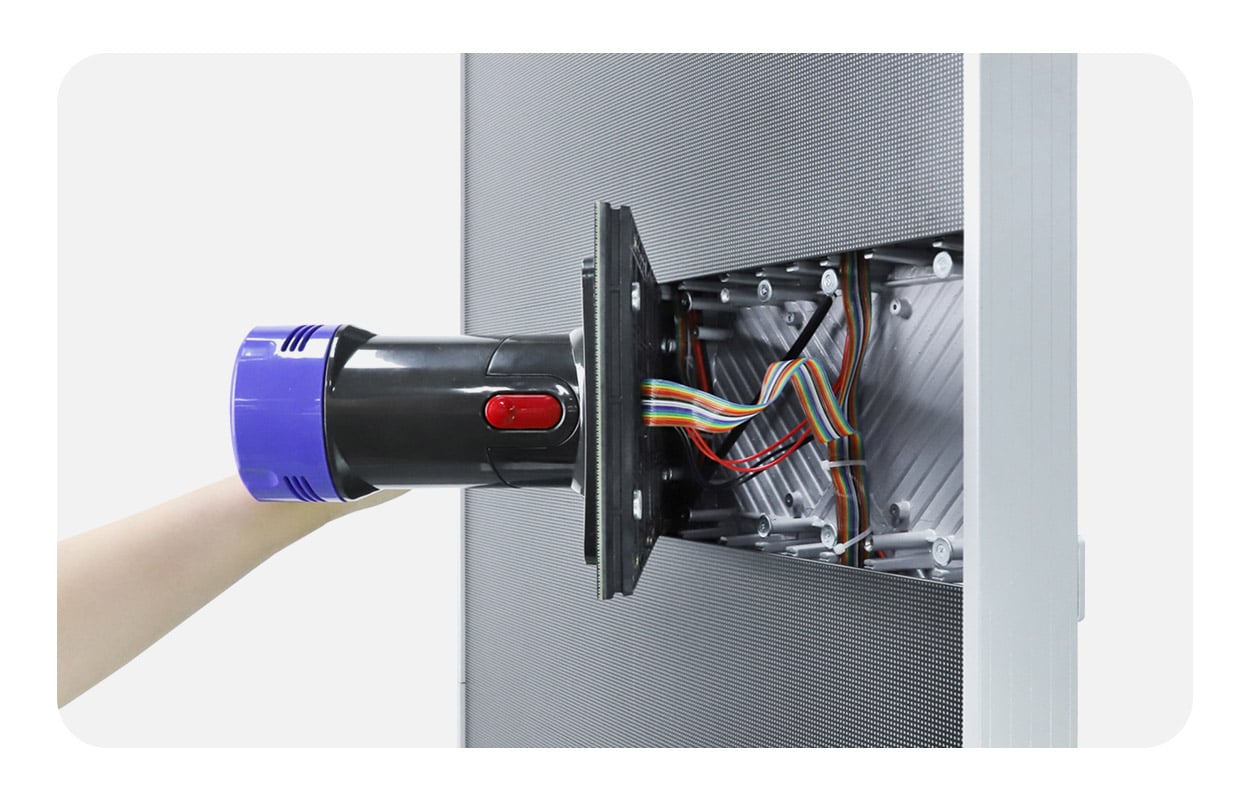

Full Front Service Design
HH1920iP5 indoor poster LED display features a fully front-accessible design, allowing for quick removal and replacement of LED modules from the front of the screen, making maintenance convenient and efficient.

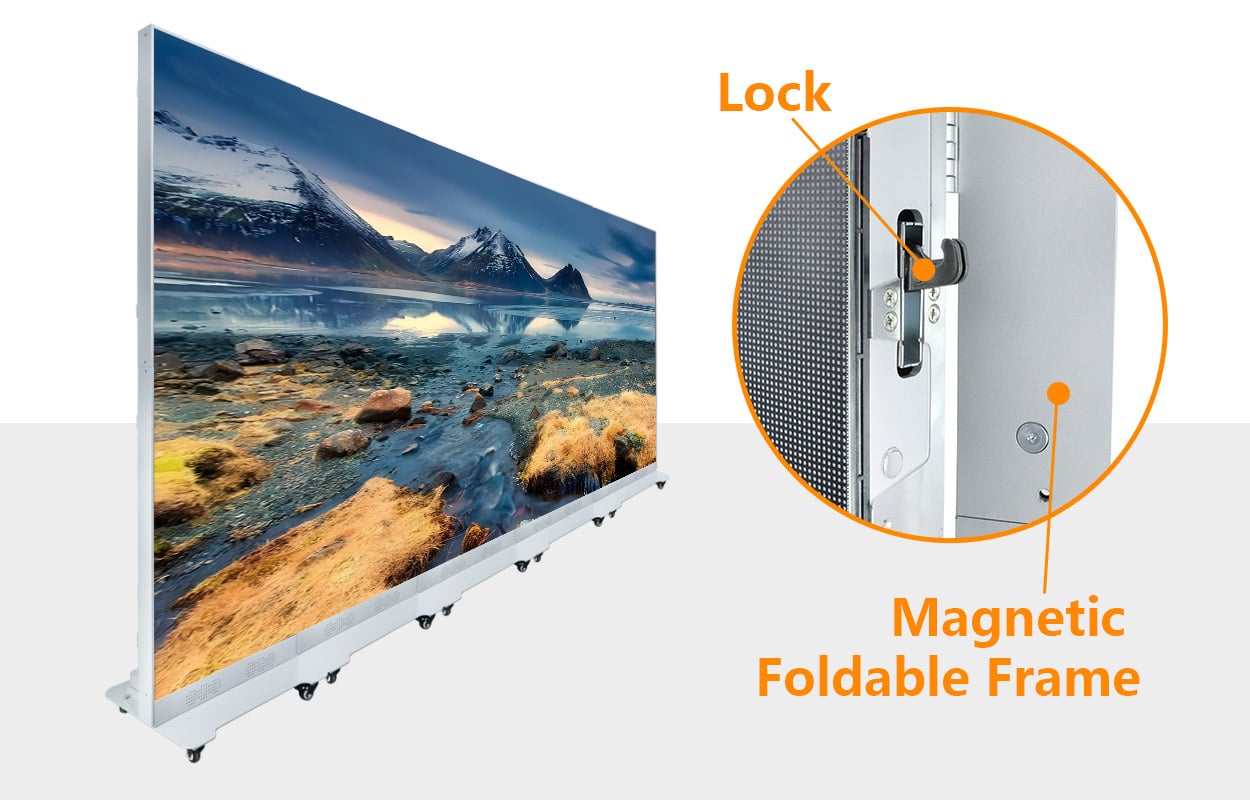

Multi-screen Splicing
HH1920iP5 poster screen adopts a foldable frame with a quick-lock design, supports fast splicing and multi-screen combination, and instantly presents a shocking large-screen effect.

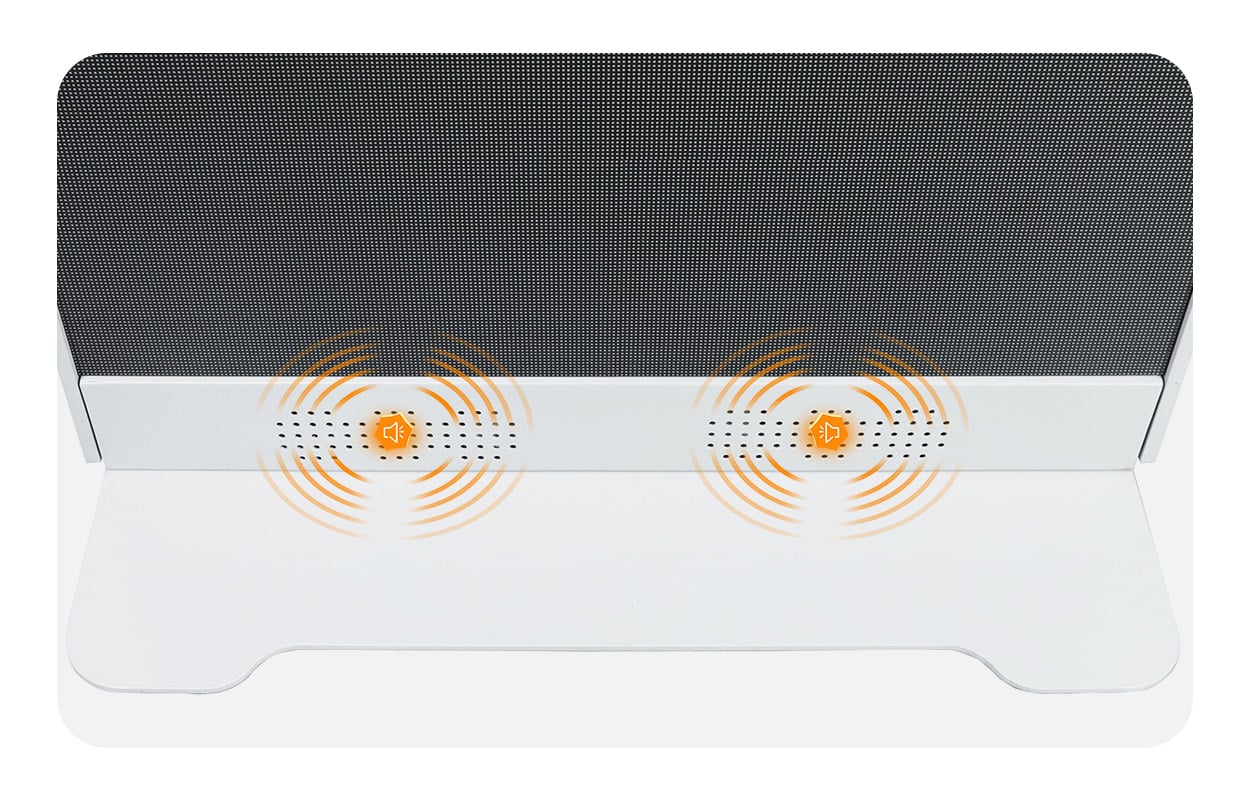

Equipped with Speakers
HH1920iP5 LED poster screen is equipped with high-quality speakers, synchronizing image and sound output for an immersive audiovisual experience.

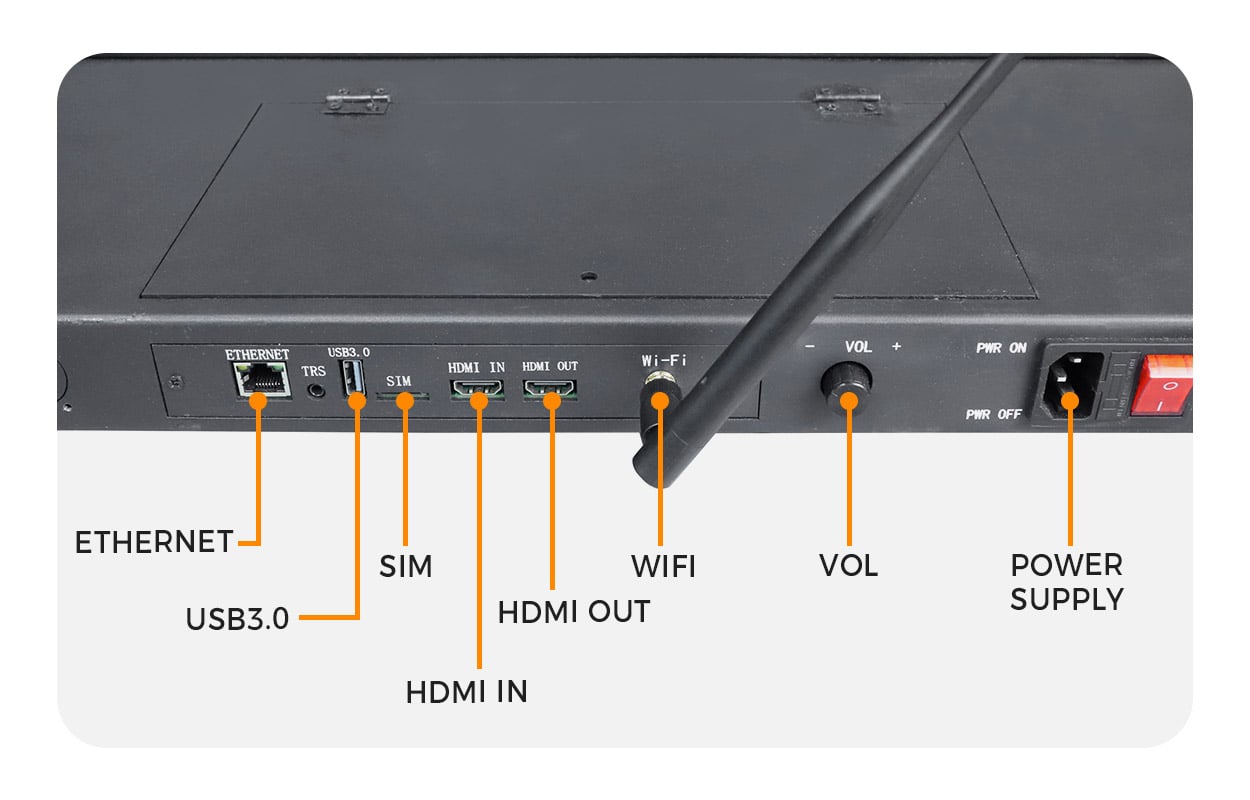

Rich Port Configuration
HH1920iP5 poster LED display features a rich array of ports, including USB 3.0, HDMI, WiFi, a SIM card slot, and Ethernet. Its compatibility allows it to easily connect to a wide range of devices, meeting playback and control needs in a variety of scenarios.

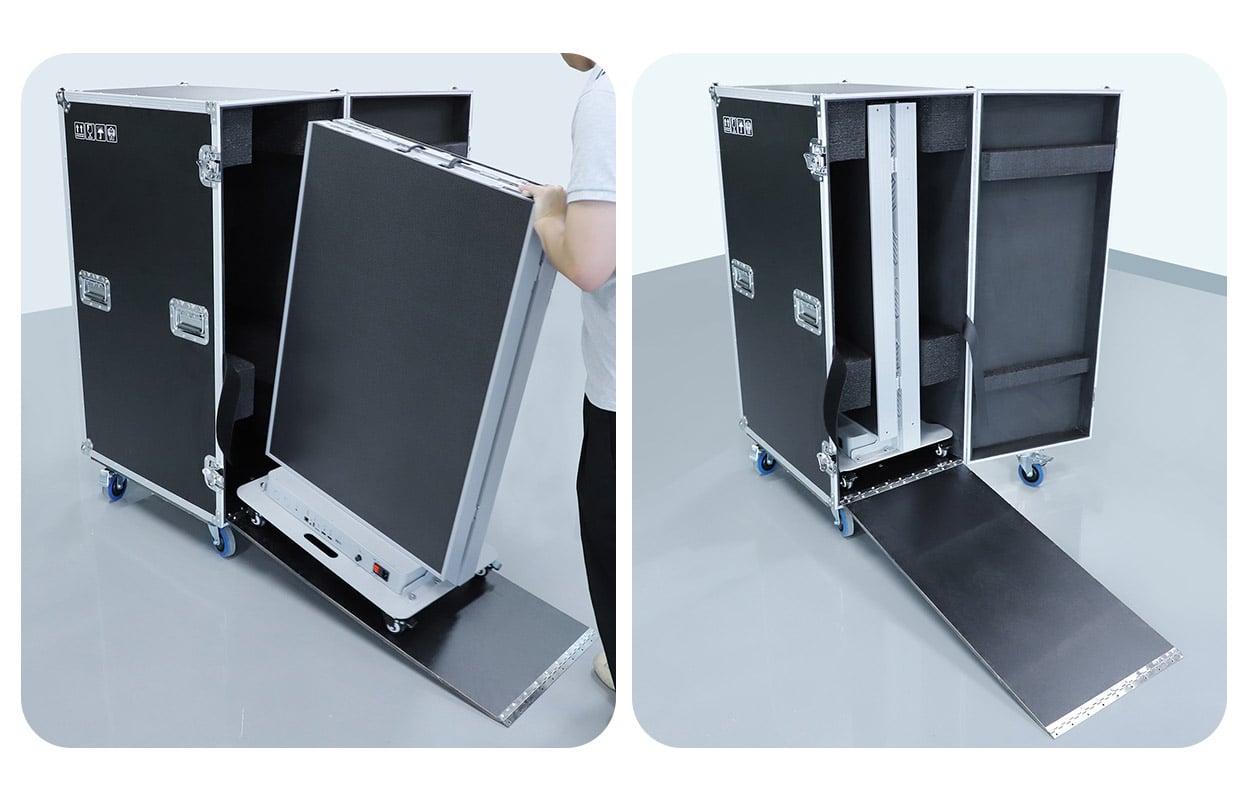

Single-Person Packaging
HH1920iP5 poster LED display can be easily folded and stored into a compact flight case by one person, significantly saving on shipping and storage space.

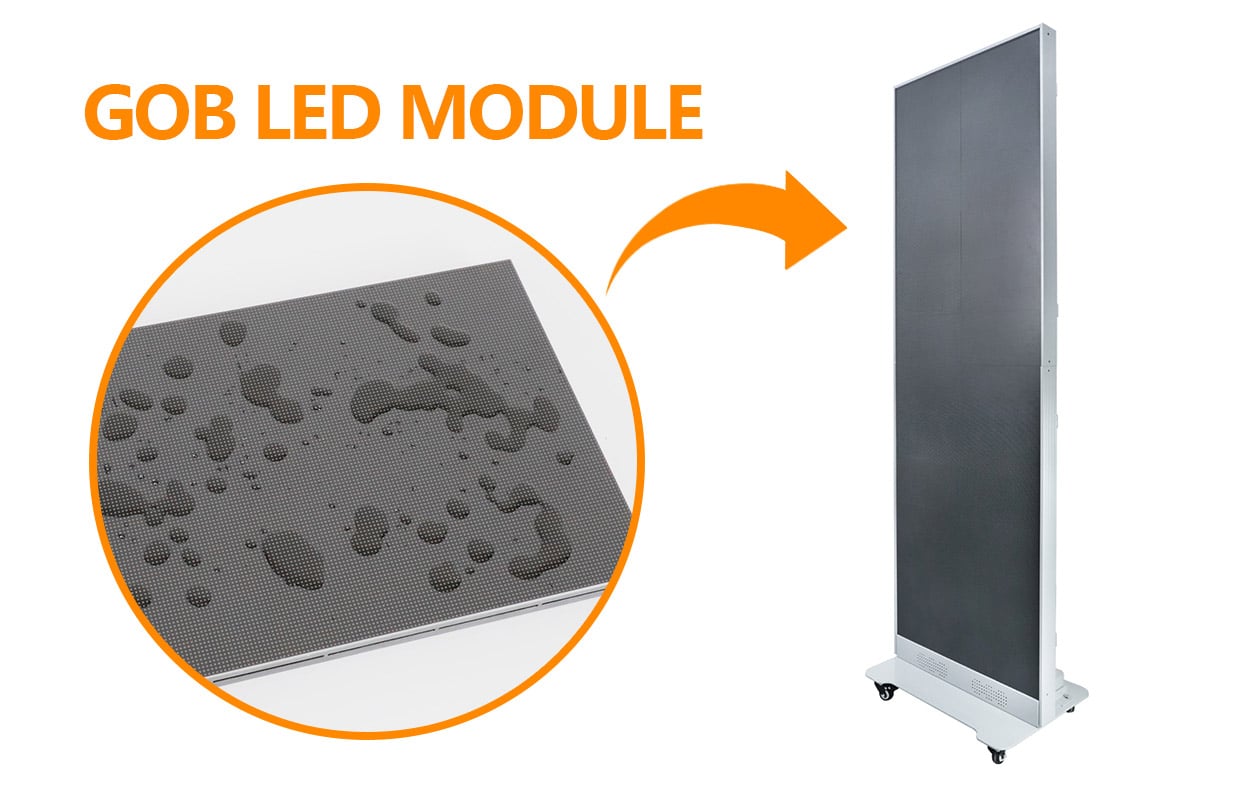

GOB LED Module
HH1920iP5 foldable poster LED screen utilizes a 320×160mm GOB module with excellent dust- and water-resistant performance, making it suitable for a variety of indoor environments. Its elegant frame design enhances overall visual quality and display quality.

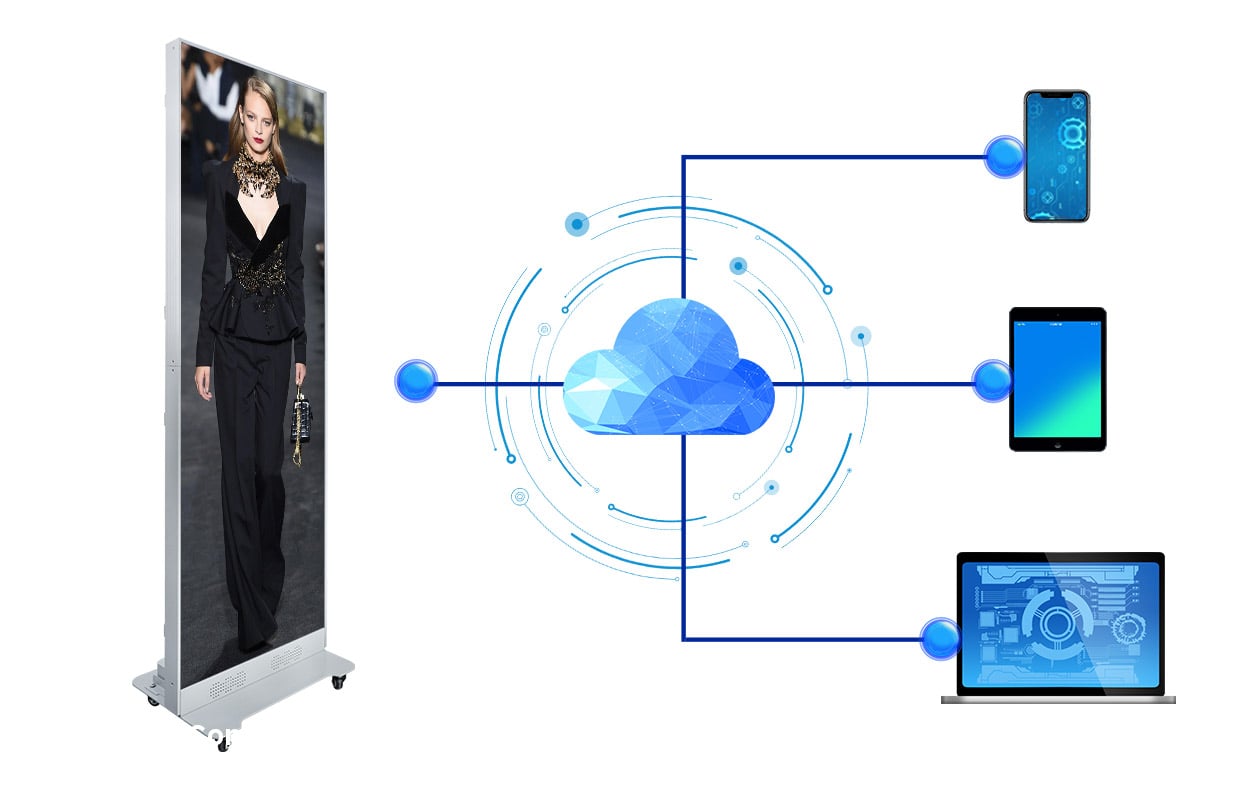

Smart Cloud Management
HH1920iP5 poster LED screen supports remote content updates on multiple devices, whether it is an iPad, mobile phone, computer or laptop, it can be easily operated. Supporting USB and WiFi connections, content publishing is more efficient and flexible.
1920iP5 640×1920 Indoor Foldable Poster LED Screen Parameter
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
|---|---|---|---|---|---|
| Model | 1920iP5-P1.25 | 1920iP5-P1.53 | 1920iP5-P1.86 | 1920iP5-P2 | 1920iP5-P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 |
| Display Size (mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
| Display Weight (KG) | 55 | 55 | 55 | 55 | 55 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
(COB) 1920iP5 640×1920 Indoor Foldable Poster LED Screen Parameter
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 |
|---|---|---|---|
| Model | 1920iP5-P1.25 | 1920iP5-P1.53-COB | 1920iP5-P1.86-COB |
| Pixel Configuration | Flip chip COB | Flip chip COB | Flip chip COB |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 |
| Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/64 | 1/52 | 1/43 |
| Display Size (mm) | 640×1920 | 640×1920 | 640×1920 |
| Display Weight (KG) | 55 | 55 | 55 |
| Brightness (CD/㎡) | 600 | 600 | 600 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 |
