Description
HH-Ball Indoor Spherical LED Display
HH-Ball LED screen is a very creative Spherical LED display . It adopts a ball structure design, breaking the limitations of traditional flat display and bringing a 360°full-view visual experience. Its LED module adopts a trapezoidal plate design to achieve seamless splicing and present an incomparable display effect.
360-degree Display

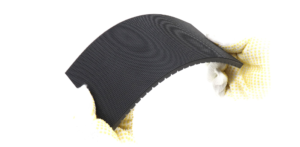

Flexible LED module
Front Service

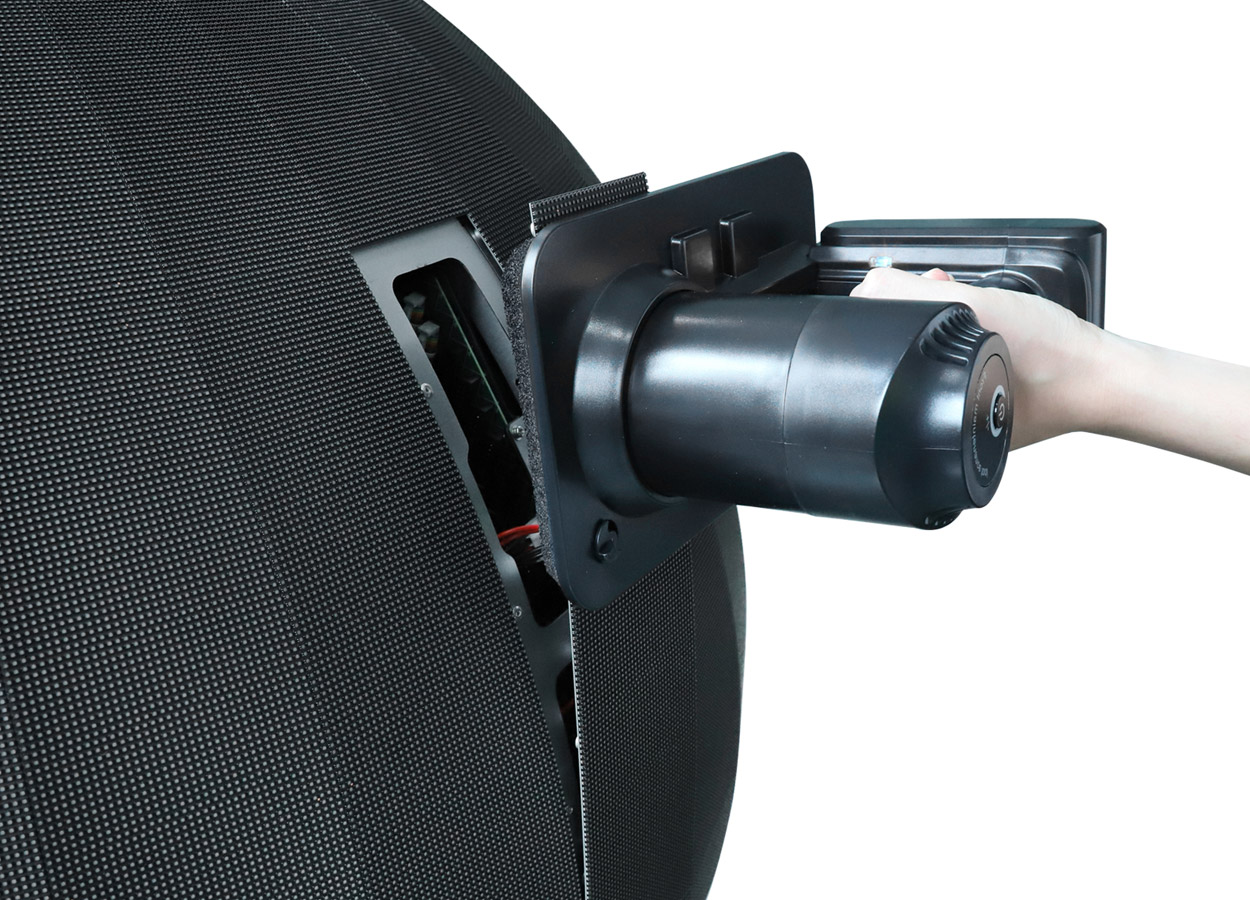

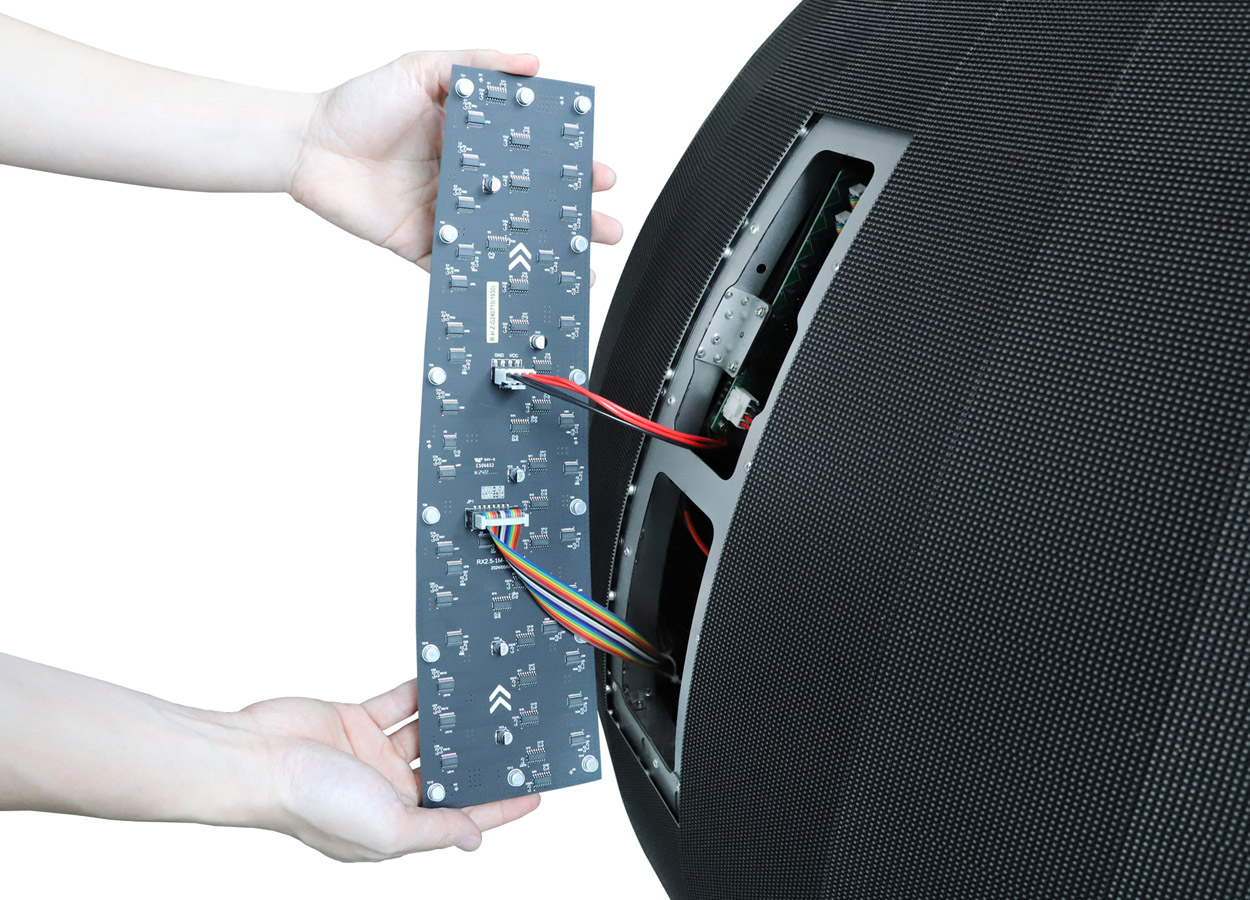

The LED spherical screen adopts a front maintenance design, which supports the rapid removal and replacement of LED modules from the front, greatly improving maintenance efficiency.
Fast Heat Dissipation
Thanks to the symmetrical structure of the sphere LED screen, the heat distribution is more even, avoiding local overheating and extending the service life and reliability of the LED screen.
Easy Installation

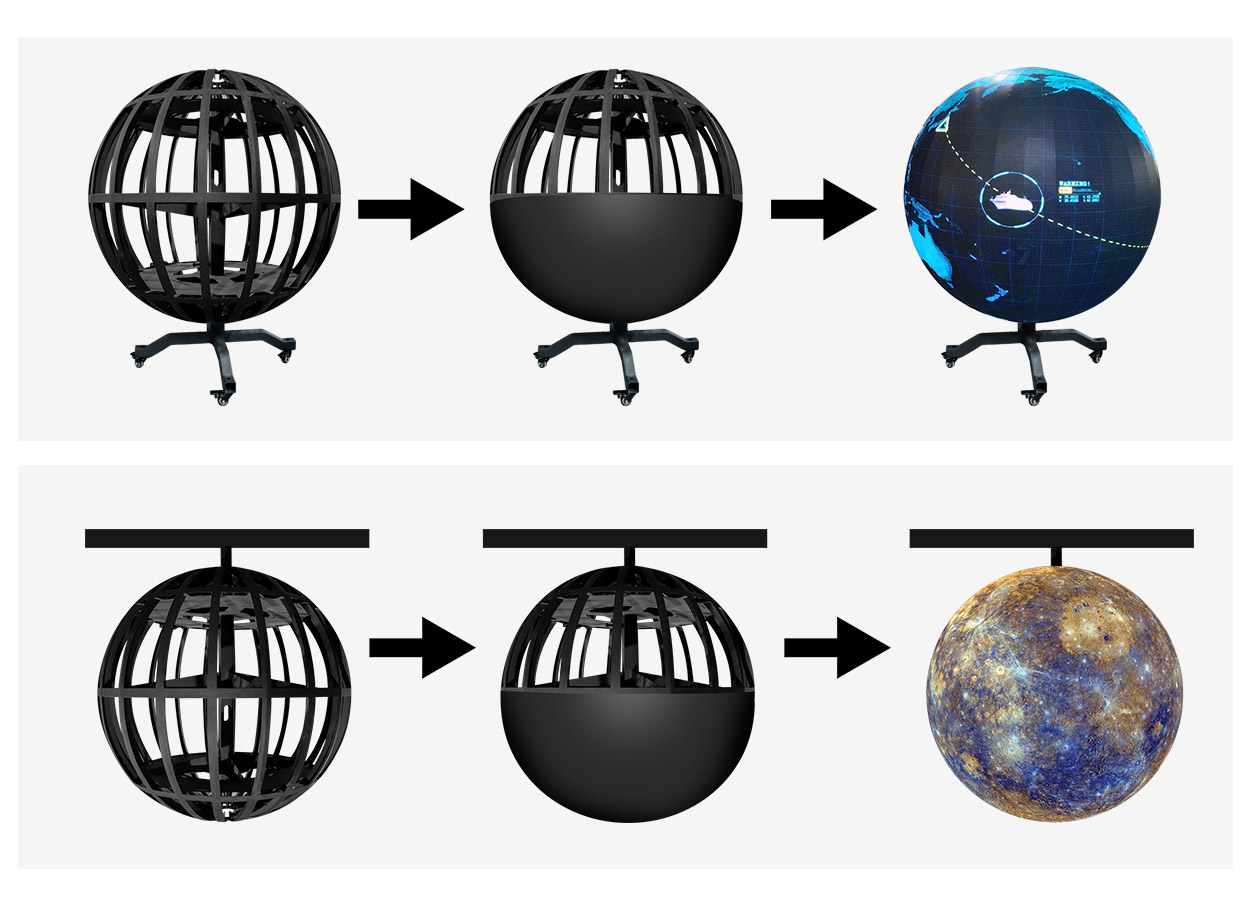

The LED spherical screen supports a variety of quick installation methods, including hanging, floor-standing installation, embedded installation, etc., which can be flexibly selected according to the on-site space.
Widely used

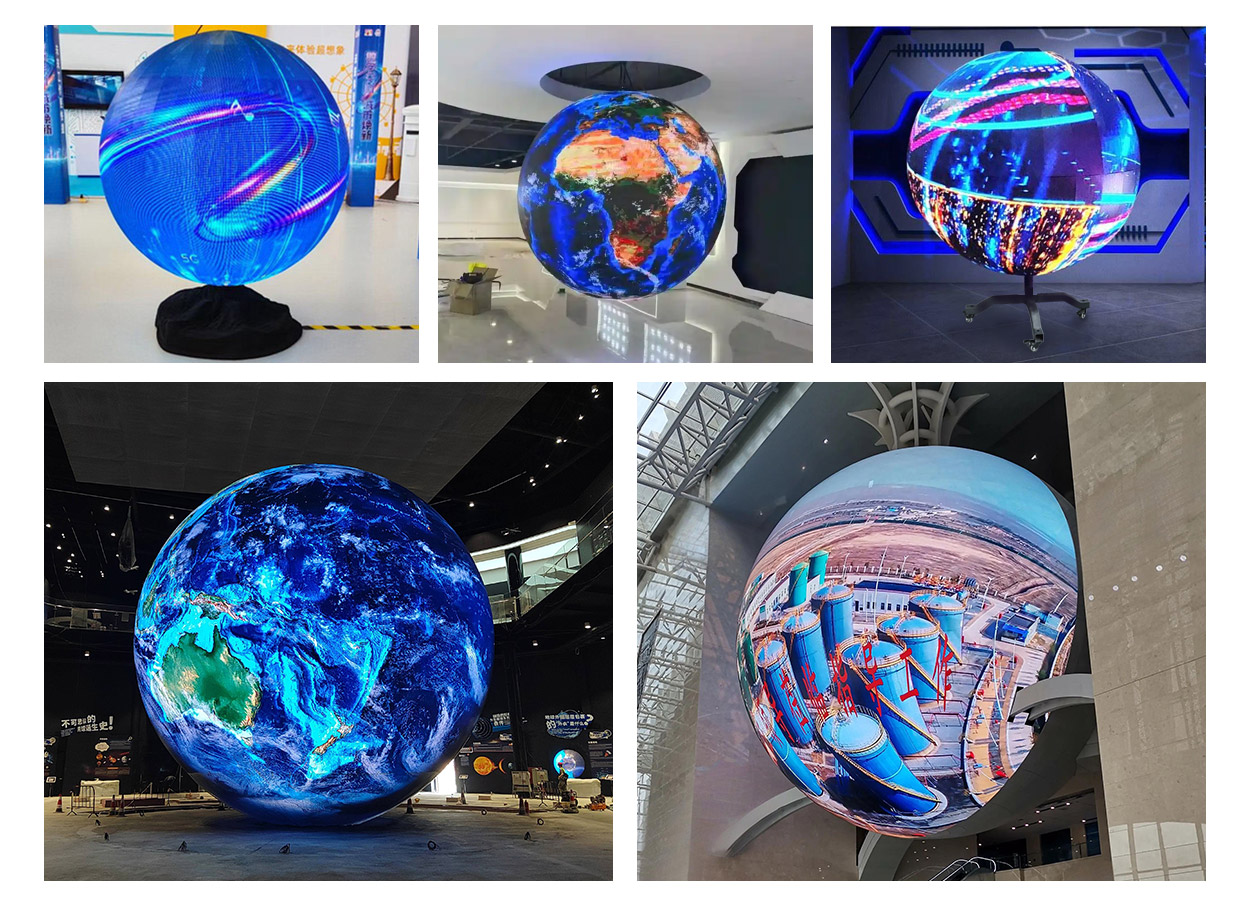

LED spherical screens are widely used in commercial displays, science and technology exhibition halls, art installations, museums, airports, stage performances and other places due to their 360° full-view display and strong visual impact.
HH-Ball Indoor Spherical LED Display Series Parameter
| Pixel Pitch (mm) | P1.8 | P2.5 |
|---|---|---|
| Model | HH-Ball-P1.8 | HH-Ball-P2.5 |
| Pixel Configuration | SMD1212 | SMD1515 |
| Density (Pixels/㎡) | 288,906 | 160,000 |
| Module Size (mm) | Special shape | Special shape |
| Driving Mode (Duty) | 1/49 | 1/37 |
| Sphere Diameter (m) | 1m / 1.5m / 2m / 2.5m / 3m | 1m / 1.5m / 2m / 2.5m / 3m |
| Sphere Area (㎡ ) | 3.14 / 7.07 / 12.57 / 19.63 / 28.27 | 3.14 / 7.07 / 12.57 / 19.63 / 28.27 |
| Spherical Resolution | 1679×839 2519×1259 / 3359×1679 / 4199×2099 / 5039×2519 | 1256×628 / 1884×942 / 2512×1256 / 3140×1570 / 3768×1884 |
| Cabinet Weight (KG) | 110 / 220 / 380 / 590 / 710 | 110 / 220 / 380 / 590 / 710 |
| Max. Power Consumption (W/pcs) | 2400 / 6400 / 9800 / 16000 / 24000 | 2400 / 4800 / 9800 / 15000 / 17600 |
| Avg. Power Consumption (W/pcs) | 800 / 2134 / 3267 / 5334 / 8000 | 800 / 1600 / 3267 / 5000 / 5867 |
| Brightness (CD/㎡) | 500-700 | 500-700 |
| Viewing Angle (°) | Full view | Full view |
| Gray Grade (Bits) | 12-16 adjustable | 12-16 adjustable |
| Operation Power | AC100-220V 50-60Hz | AC100-220V 50-60Hz |
| Frame Frequency (Hz) | 50&60 | 50&60 |
| Refresh Frequency (Hz) | ≥3000-3840 | ≥3000-3840 |
| Working Temperature (ºC) | -10～+50 | -10～+50 |
| Protecting Grade | IP41 | IP41 |
