Description

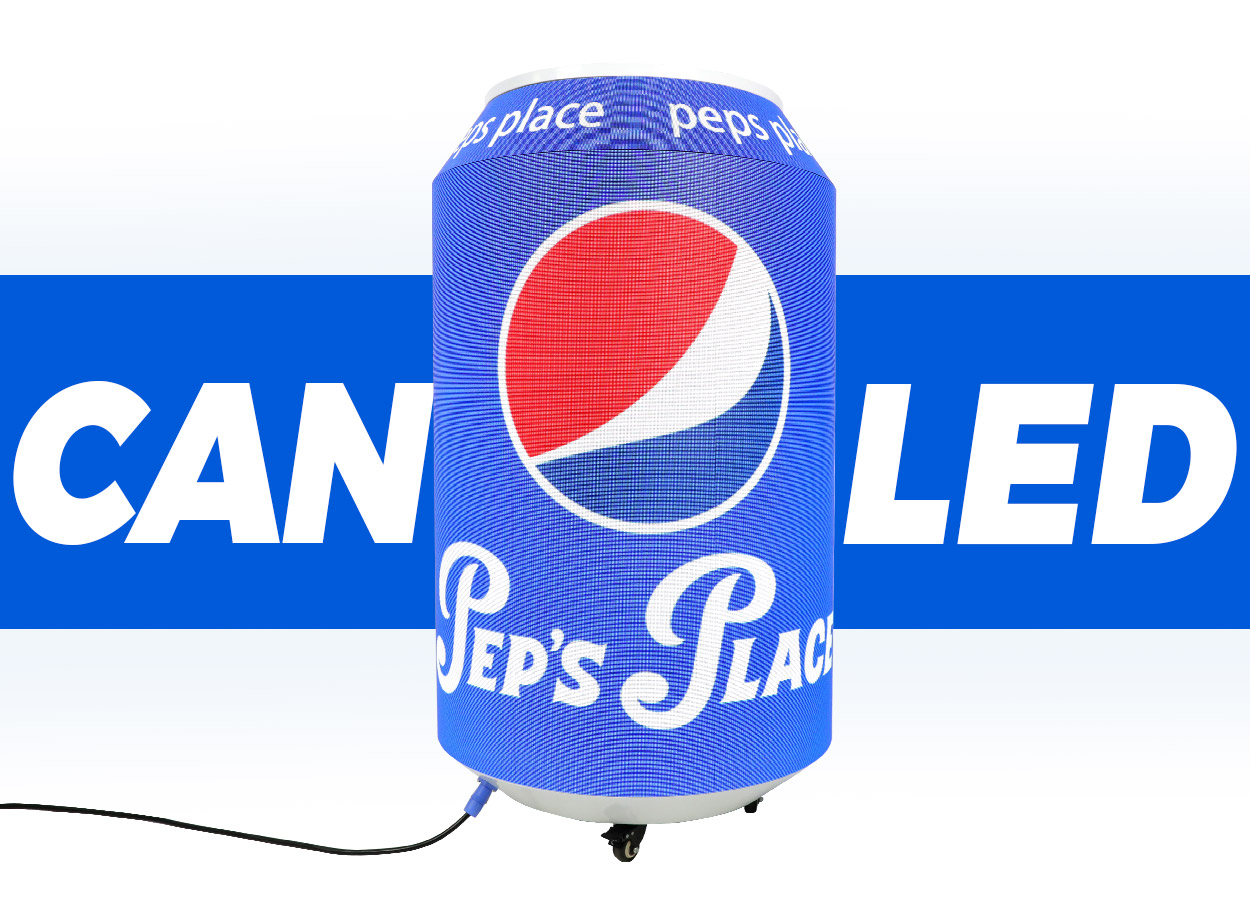

Canned Indoor LED display screen
HH-DCan indoor can LED screen is an innovative LED display that perfectly restores the bottle shape of a beer can and presents it in a 1:1 ratio. It is both visually impactful and creative. It can flexibly replace text or video content, helping brand stores break the conventional impression and attract more consumers’ attention.
Flexible LED Module
Flexible LED technology enables the LED can screen to have an ultra-wide viewing angle and excellent surface flatness when used indoors.

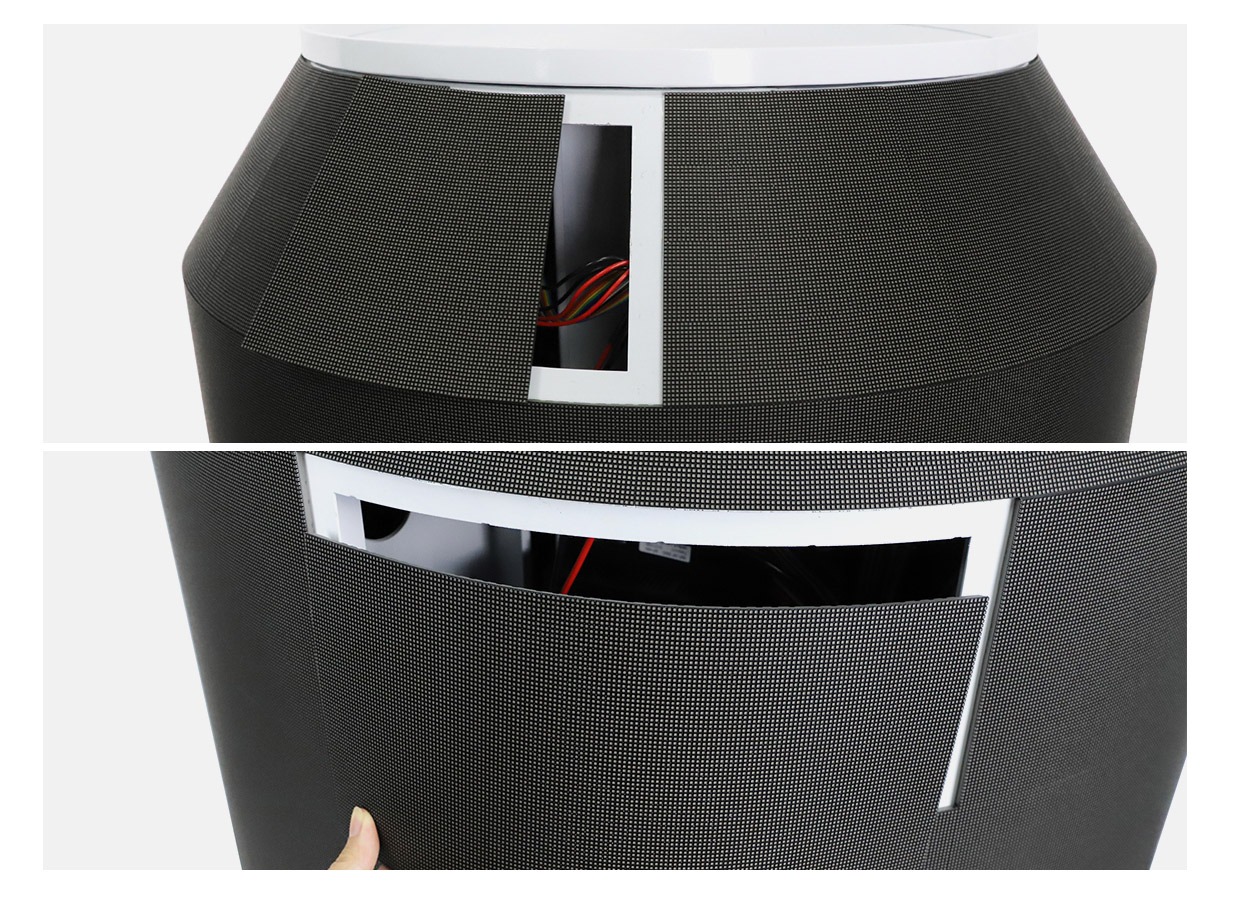

Front Service
With the help of strong magnets, the flexible LED display module can be easily installed and provides flexible layout options. Both installation and maintenance can be operated from the front.

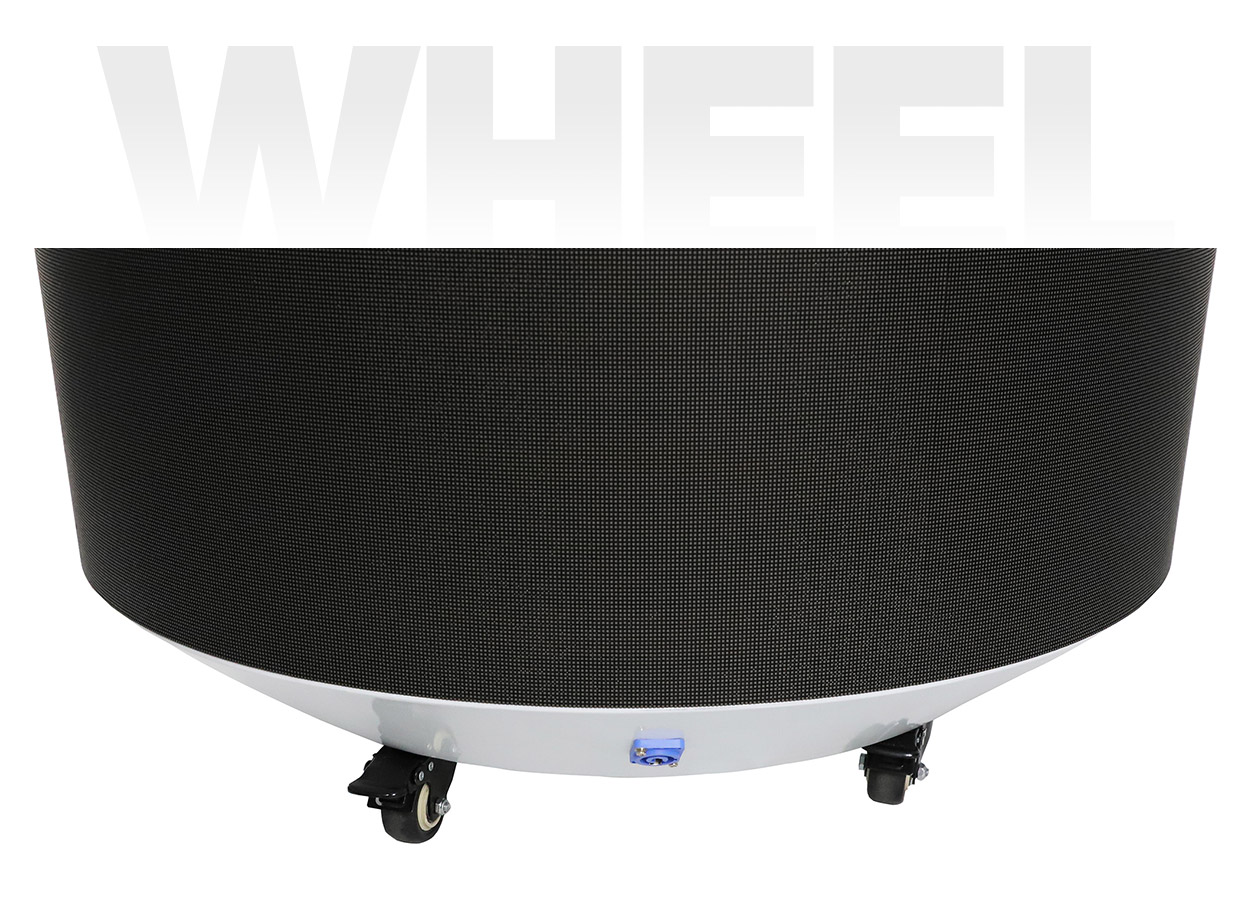

Easy to Move with Wheels
The base of HH-DCan indoor can LED screen is equipped with three high-quality wheels, which facilitates flexible movement and improves the adjustability and adaptability of the screen.

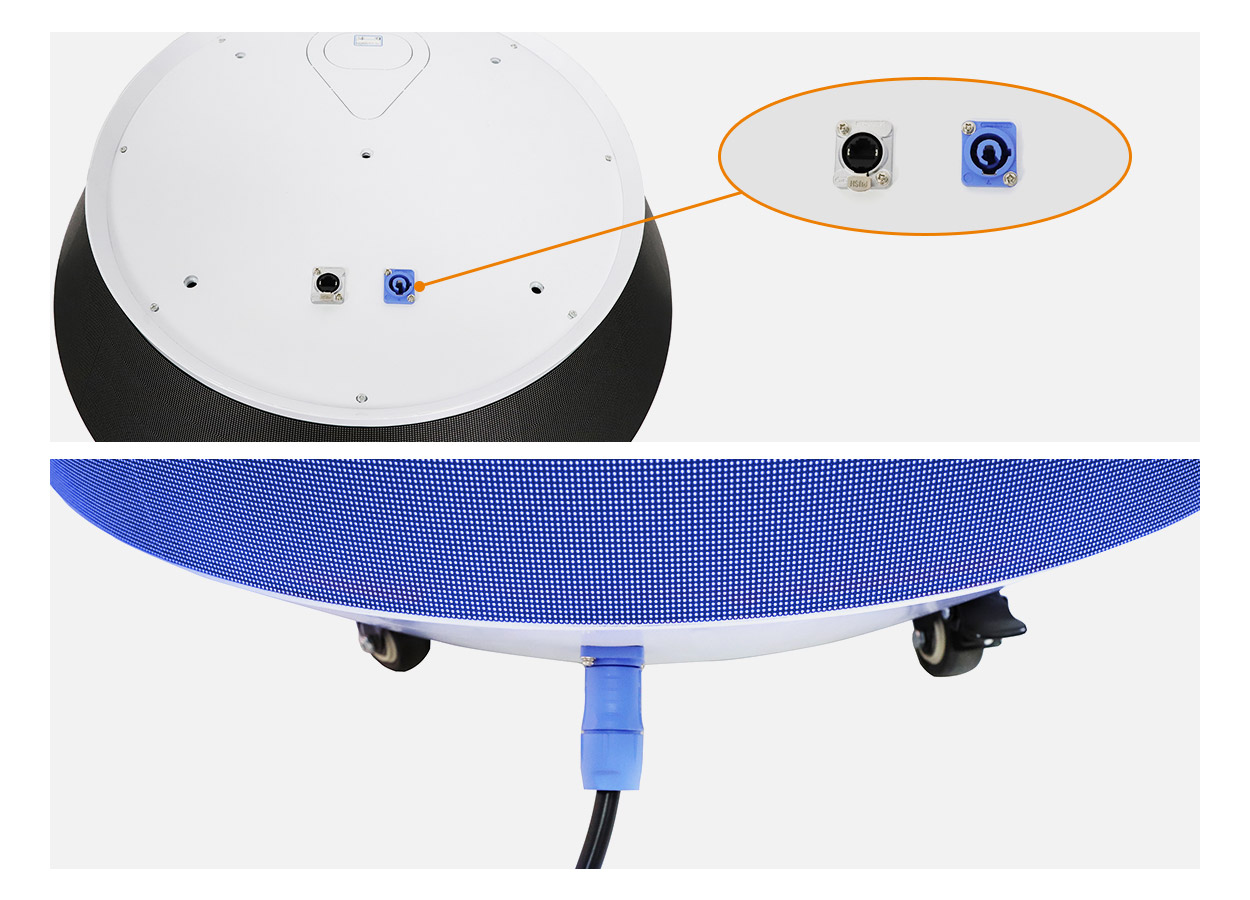

Plug and Play
HH-DCan indoor can LED screen adopts a plug-and-play design, which does not require complicated control operations. Users can easily get started and start quickly.

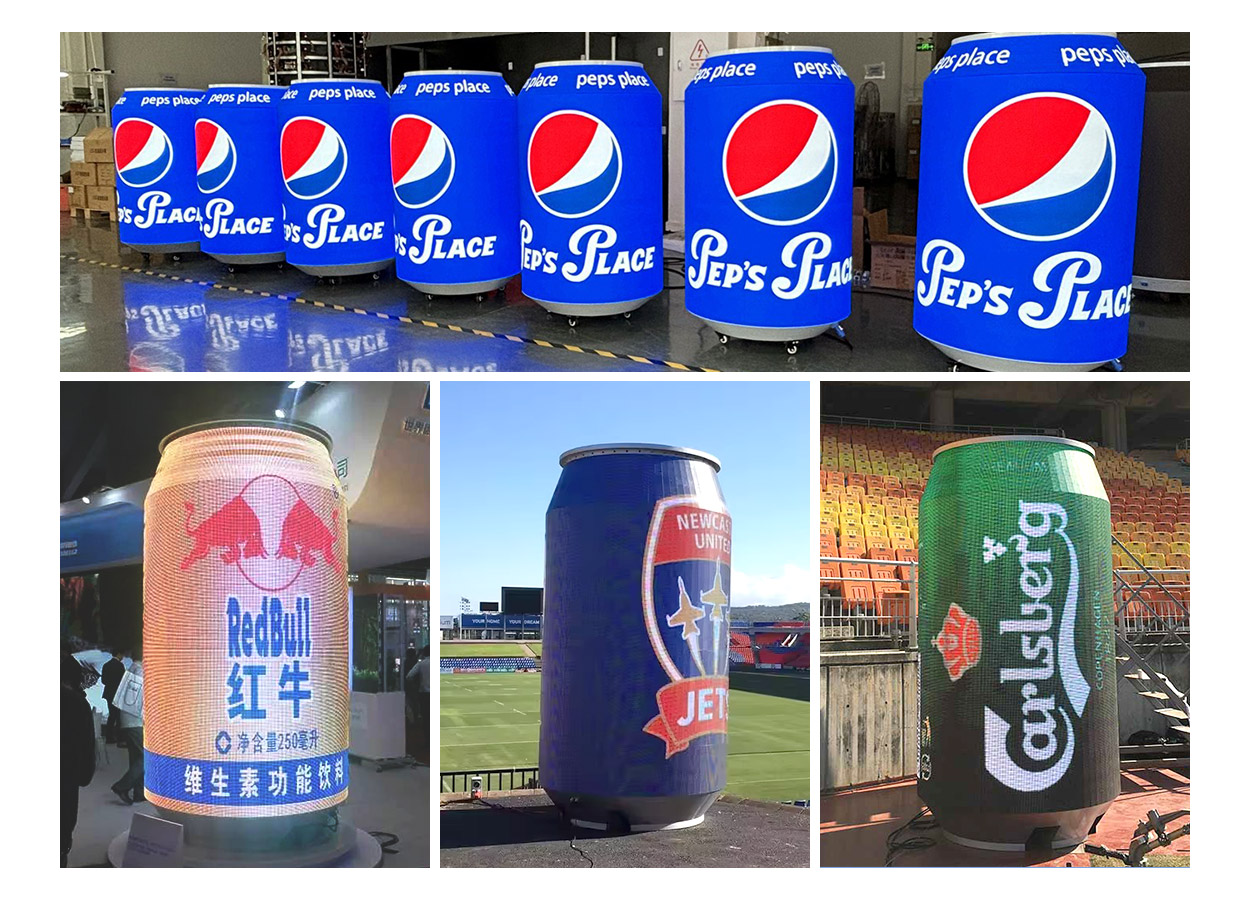

Creative Display
HH-DCan indoor can LED screen is suitable for brand promotion of beer, herbal tea, carbonated beverages, etc. It can be placed in shopping malls, supermarkets, hotels, airports and other places, bringing a new way of advertising display for enterprises and enhancing brand exposure and attractiveness.
HH-DCan Indoor Can LED Screen Series
| Pixel Pitch (mm) | P1.875 | P2 |
|---|---|---|
| Model | HH-DCan-P1.875 | HH-DCan-P2 |
| Pixel Configuration | SMD1515 | SMD1515 |
| Density (Pixels/㎡) | 284,444 | 250,000 |
| Module Resolution (Pixel) | 128×64 | 160×80 |
| Module Size (mm) | 240×120 | 320×160 |
| Driving Mode (Duty) | 1/32 | 1/40 |
| Cabinet Size (mm) | 764 * 1341 / 764 * 1510 / 764 * 1678 / 764 * 1847 | 713 * 1270 / 713 * 1430 / 713 * 1590 / 713 * 1750 / 713 * 1910 |
| Cabinet Weight (KG) | ≈85 / 90 / 100 / 115 | ≈75 / 83 / 90 / 100 / 112 |
| Brightness (CD/㎡) | 650 | 650 |
| Viewing Angle (°) | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 |
| Frame Frequency (Hz) | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 |
| Protecting Grade | IP31 | IP31 |
