Description
HH-FD Indoor Front Desk LED Display
Front desk LED display, or counter LED screen, is typically installed in company lobbies, hotel reception areas, or government agencies. Combining functionality with branding, these displays offer a more visually impactful experience than traditional front-of-house solutions.

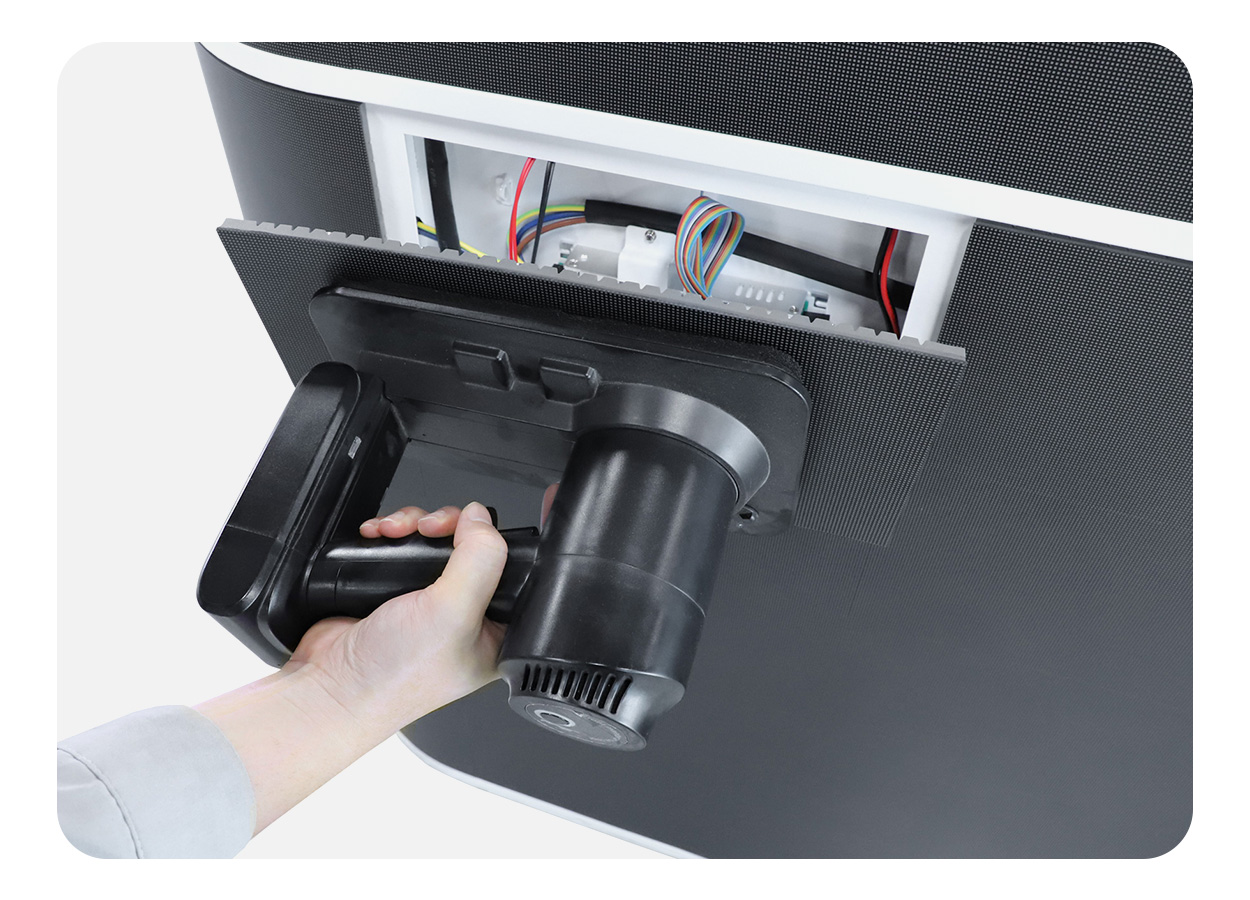

Front Service Design
HH-FD indoor front desk LED display feature a suction-cup front-accessible design, allowing maintenance and cleaning from the front in seconds without disassembly, significantly reducing downtime and labor.

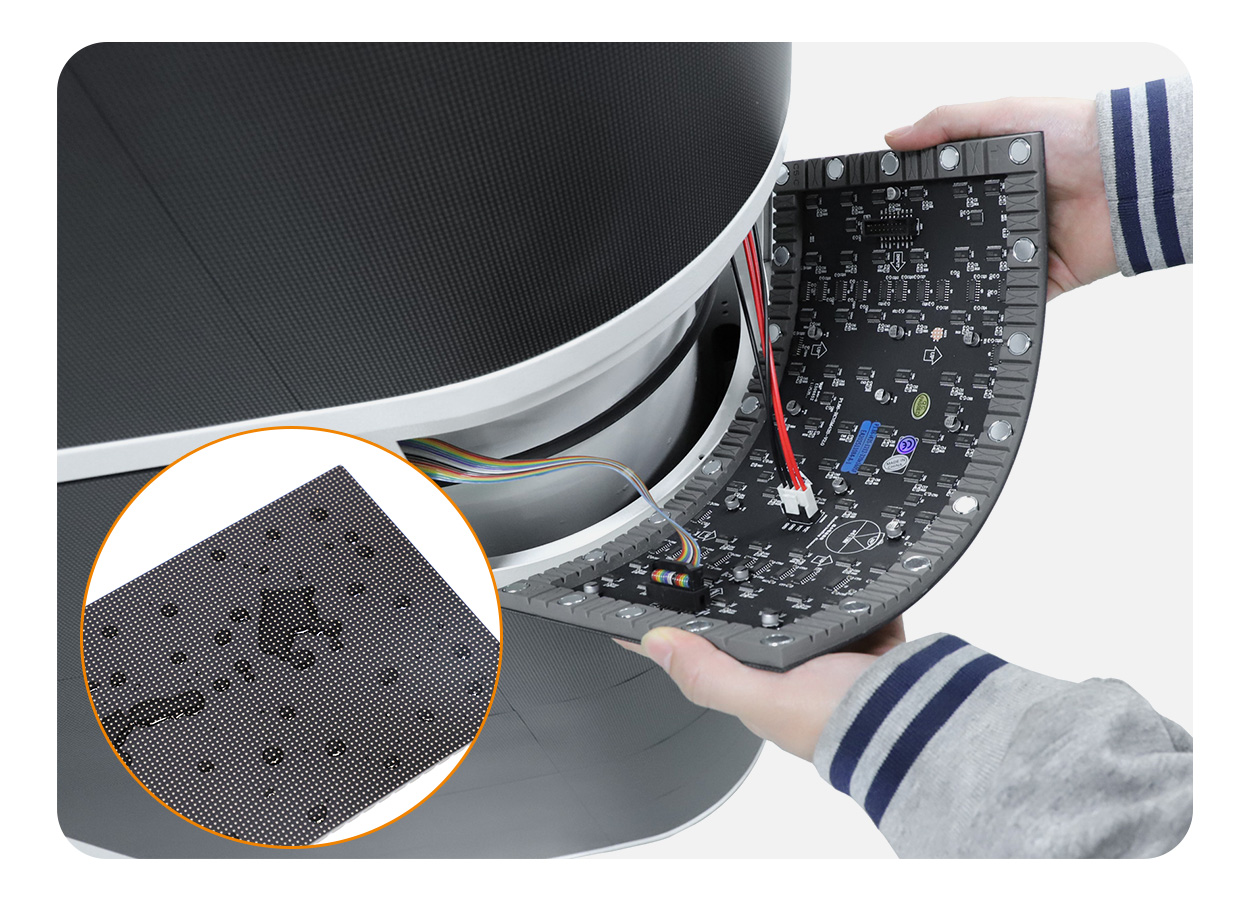

GOB LED Module
HH-FD indoor front desk LED display utilizes a flexible LED module design with a unit size of 320×160mm, allowing it to flexibly adapt to countertop designs.

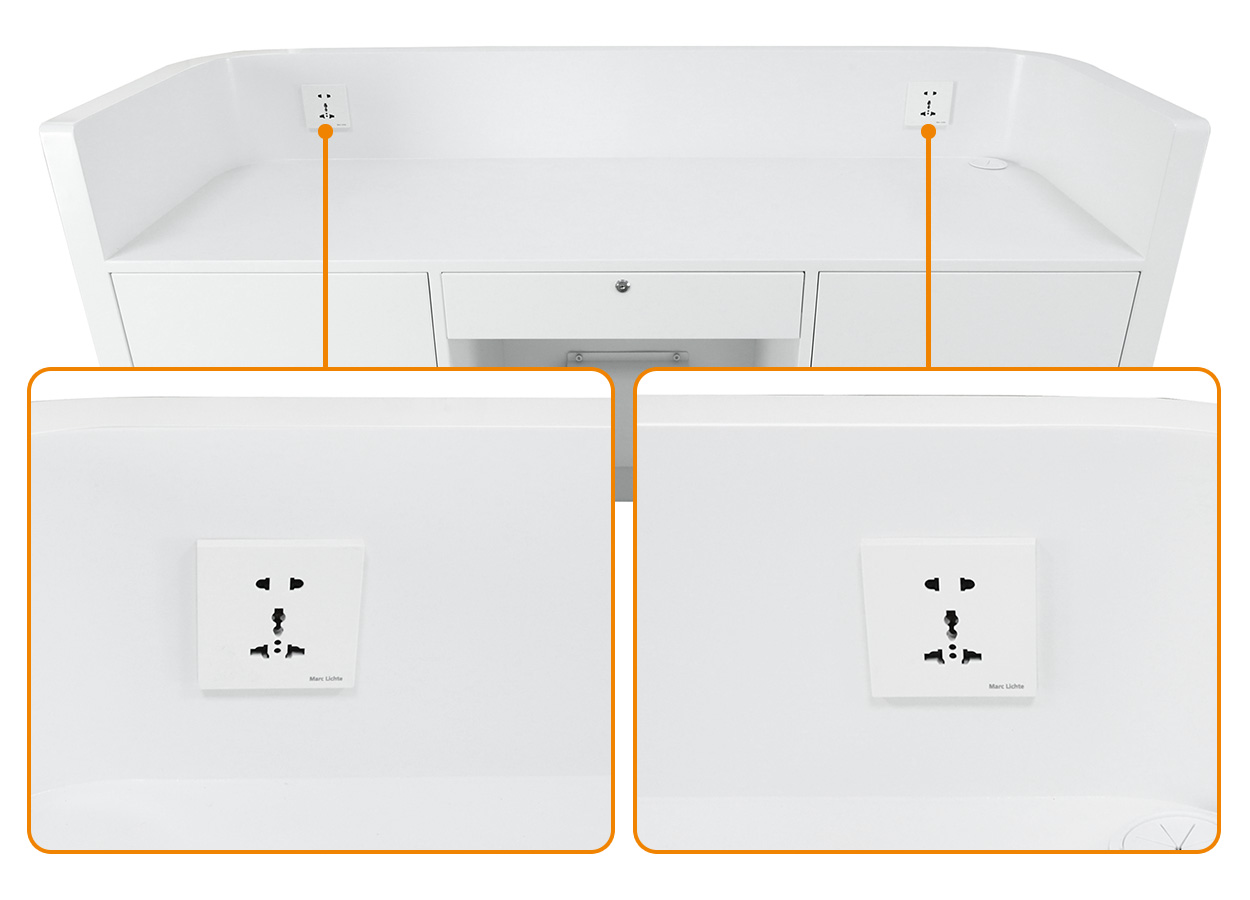

Socket Can be Customized
The Front desk LED display is equipped with dual power sockets and supports customization of various global power standards, including US, EU, UK, and Chinese, to meet your international needs.

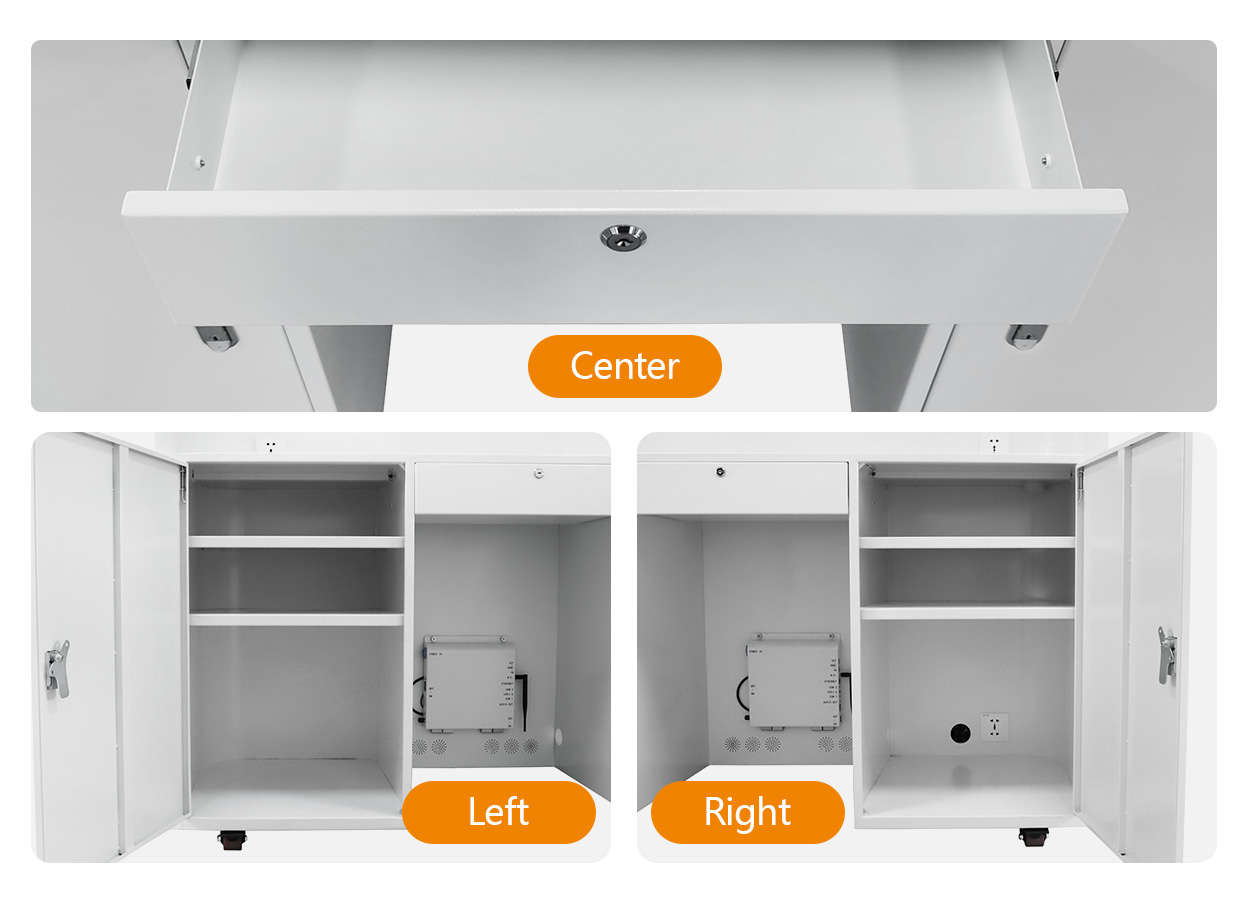

Ample Storage Space
Multiple independent drawers built into the front desk LED display maximize space utilization, allowing for categorized management and efficient access to tools and supplies.

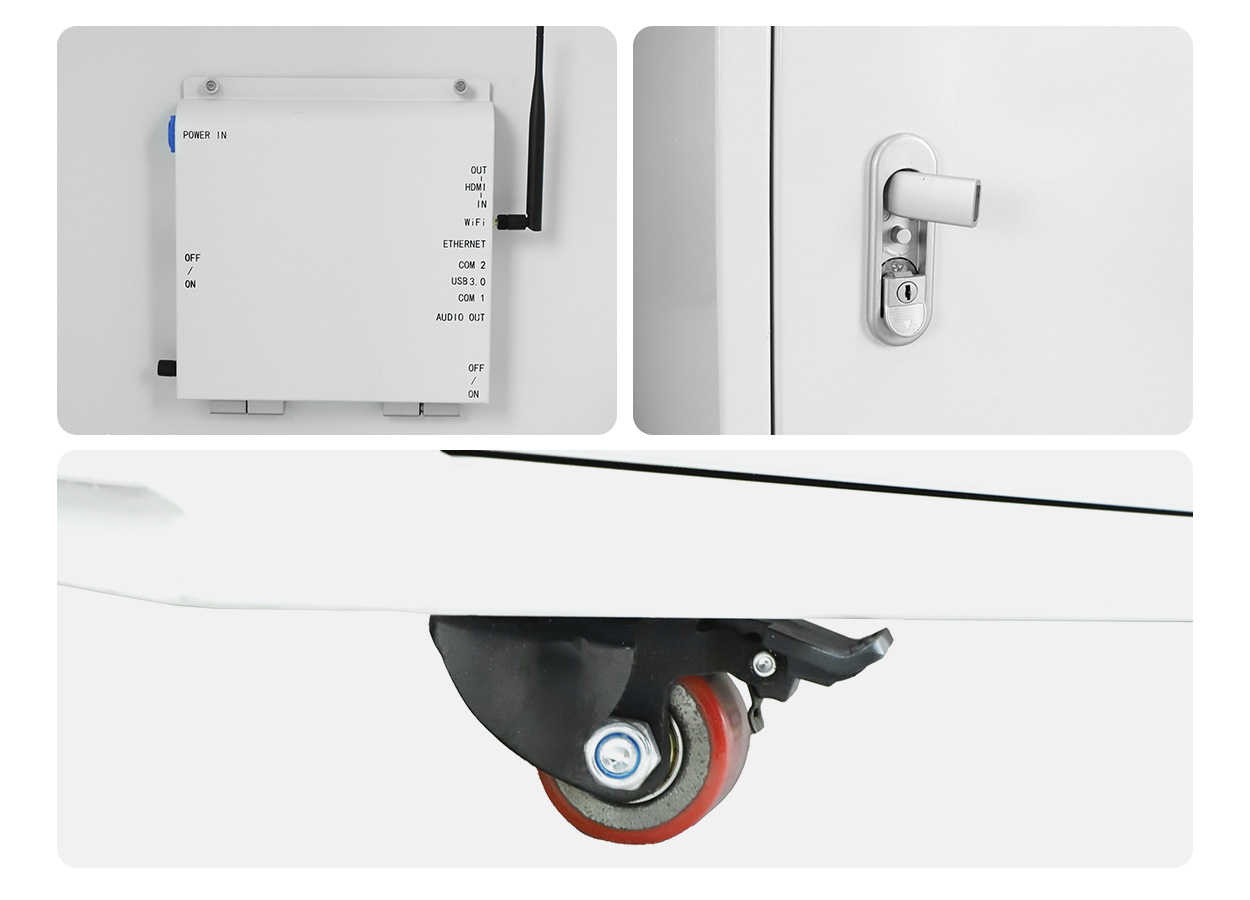

Easy to Use
The front desk LED display is plug-and-play; simply plug in and it’s ready to go. Universal casters on the base allow for easy and flexible mobility.

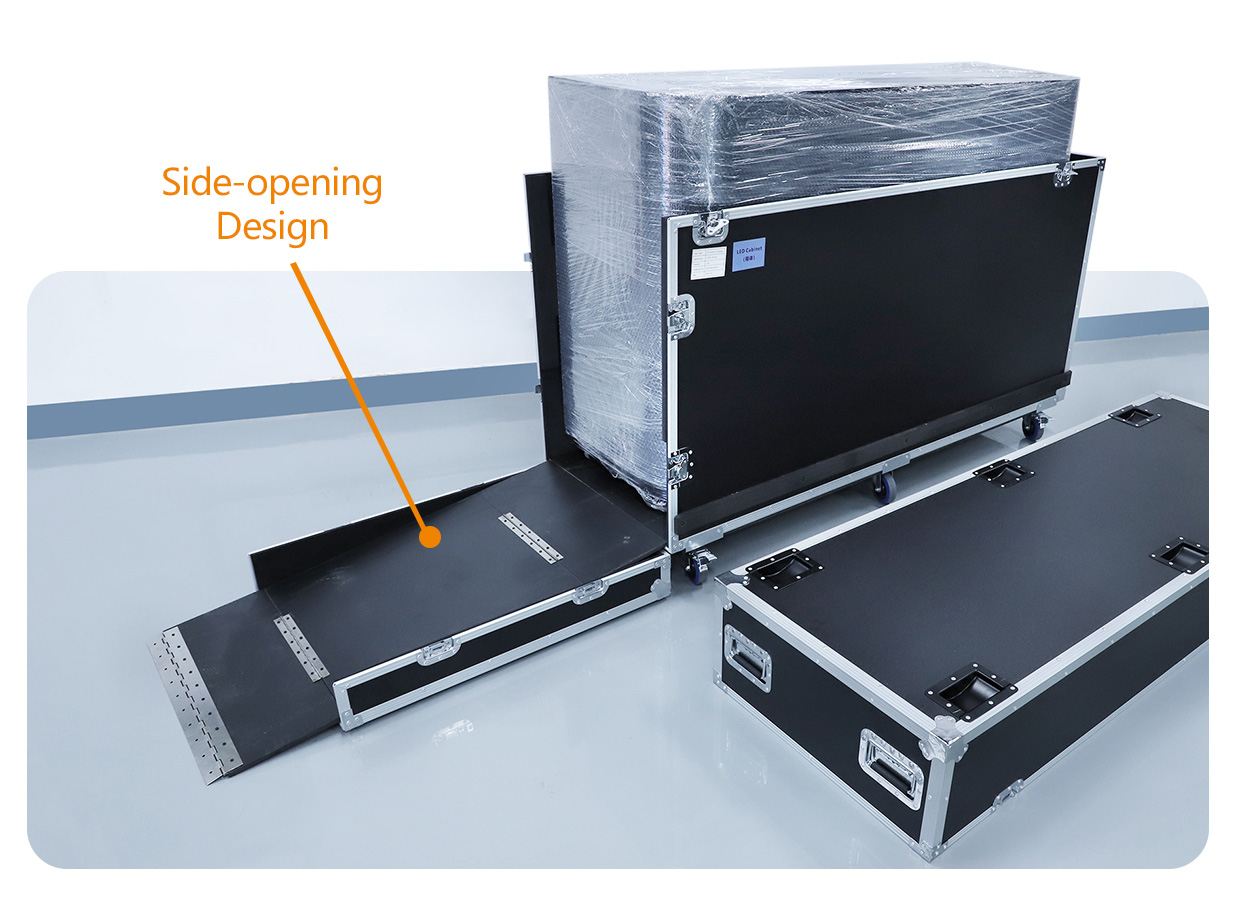

Customized Flight Case
HonghaiLED provides this front desk LED display with a custom flight case featuring wide-opening sides that form a convenient slope, allowing a single person to slide the display in smoothly and effortlessly.

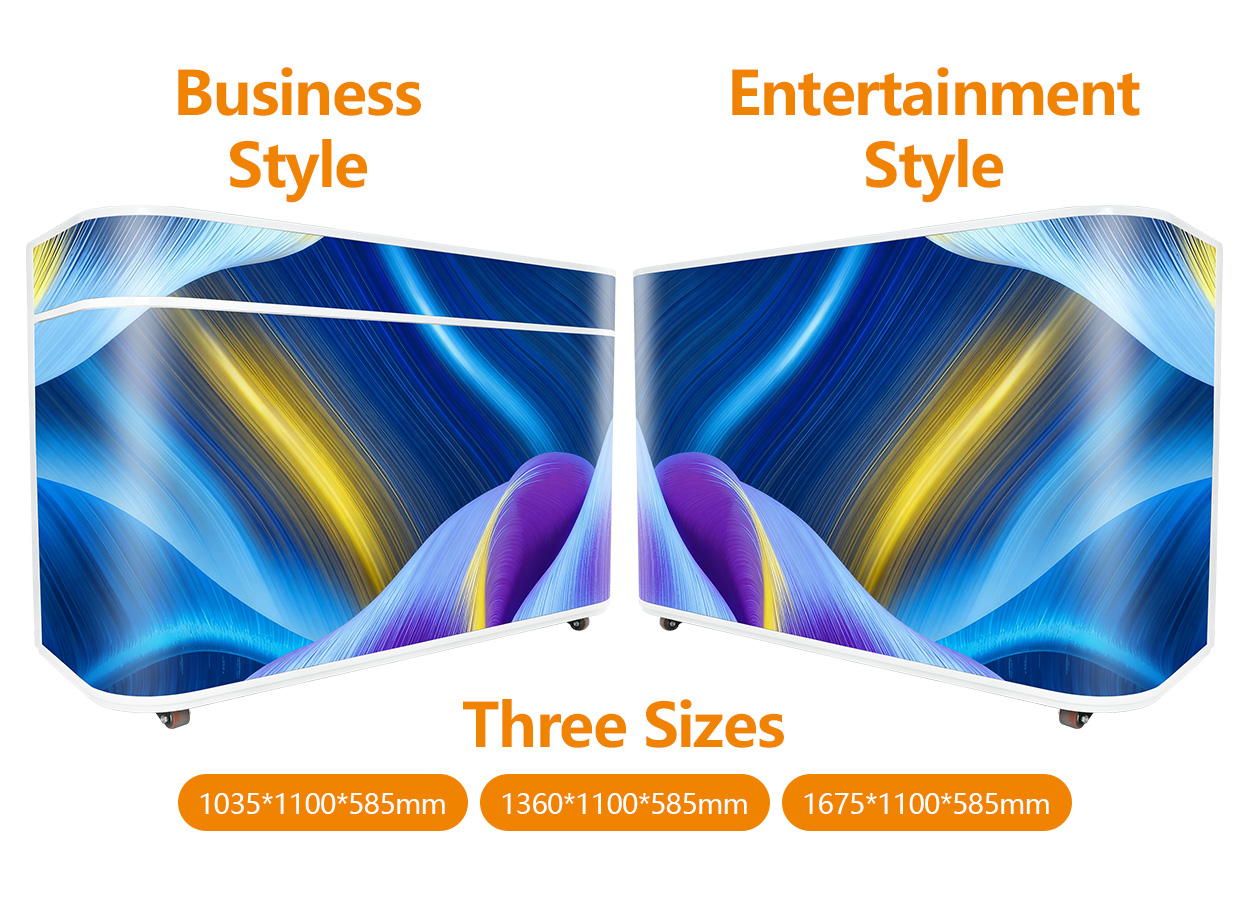

Two Styles, Three Sizes
The front desk LED screen offers two appearance styles and three sizes to meet different scene and space requirements.

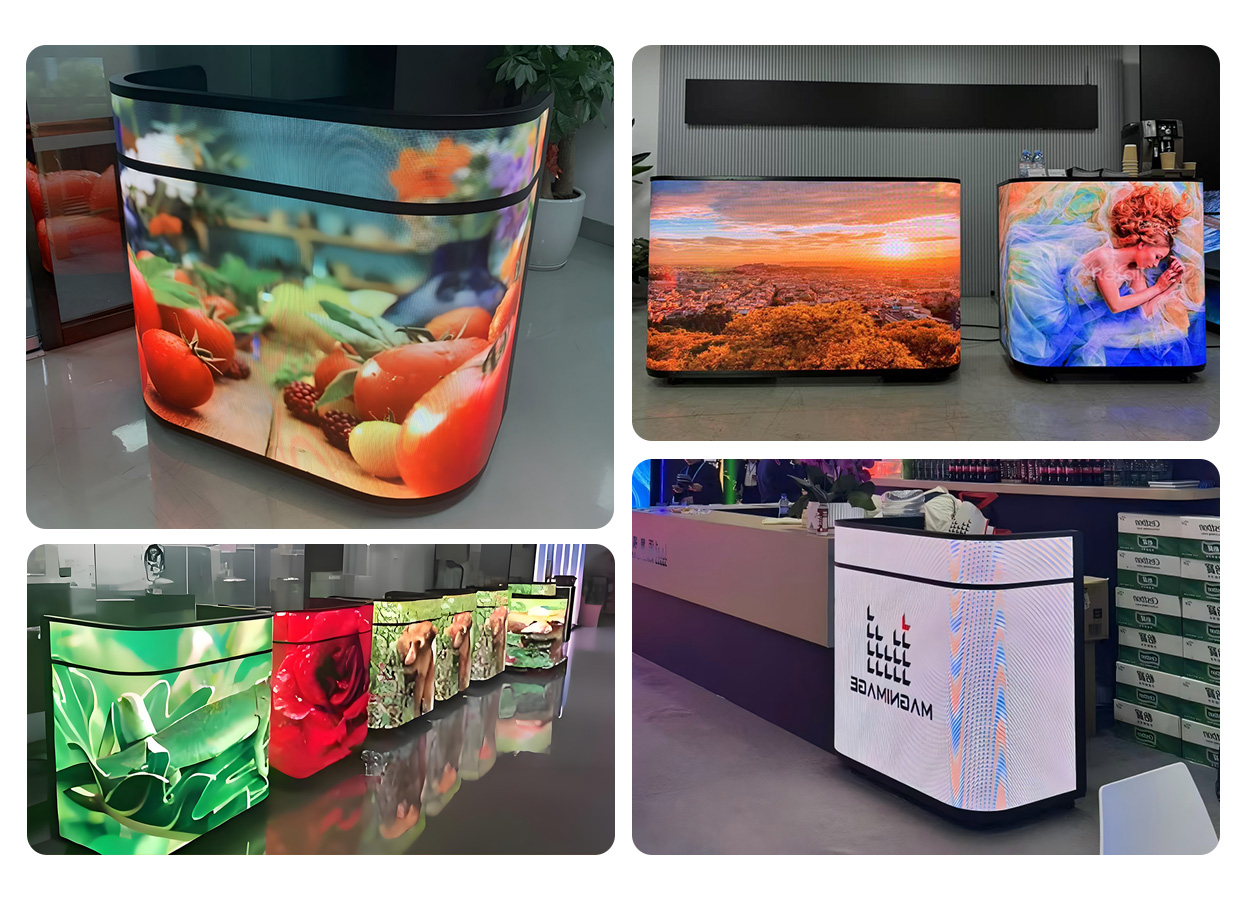

Wide Applications
Reception desk LED screens are widely used in various locations, including company lobbies, hotel receptions, and government reception areas, effectively enhancing your corporate image and improving the visitor experience.
HH-FD Indoor Front Desk LED Display Parameter
| Pixel Pitch (mm) | P1.53(GOB) | P1.86(GOB) | P2.5(GOB) |
|---|---|---|---|
| Model | HH-FD-P1.53 | HH-FD-P1.86 | HH-FD-P2.5 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 |
| Density (Pixels/㎡) | 422,500 | 288,906 | 160,000 |
| Module Resolution (Pixel) | 208×104 | 172×86 | 128×64 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/52 | 1/43 | 1/32 |
| Display size(L*H) | 1920* 960 / 2240* 960 / 2560* 960 | 1920* 960 / 2240* 960 / 2560* 960 | 1920* 960 / 2240* 960 / 2560* 960 |
| Cabinet Dimension(L*H*D) | 1035*1100*585 / 1360*1100*585 / 1675*1100*585 | 1035*1100*585 / 1360*1100*585 / 1675*1100*585 | 1035*1100*585 / 1360*1100*585 / 1675*1100*585 |
| Cabinet Resolution(Pixel) | 1248*624 / 1456*624 / 1664*624 | 1248*624 / 1456*624 / 1664*624 | 1248*624 / 1456*624 / 1664*624 |
| Cabinet Weight (KG) | 97 / 115 / 130 | 97 / 115 / 130 | 97 / 115 / 130 |
| Brightness (CD/㎡) | 600 | 600 | 600 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 12-16 | 12-16 | 12-16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 1200 | 1200 | 1200 |
| Avg. Power Consumption (W/㎡) | 500 | 500 | 500 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Working Temperature (ºC) | -20～+50 | -20～+50 | -20～+50 |
| Protection Grade | IP43 | IP43 | IP43 |
