Description
Indoor Front Service LED Display
LED display is a visually stunning product, featuring a front service design for its LED power supply,
board, and modules. It is an ideal choice for indoor fixed installations.
Indoor Front Service LED Display Series Parameter
| Pixel Pitch (mm) | P1.57 | P1.87 | P2.5 |
| Pixel Configuration | SMD1010 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 401111 | 284444 | 160000 |
| Module Resolution (Pixel) | 152×76 | 128×128 | 96×96 |
| Module Size (mm) | 240×120 | 240×240 | 240×240 |
| Driving Mode (Duty) | 1/38 | 1/64 | 1/48 |
| Cabinet Size (mm) | 480×480 | 480×480 | 480×480 |
| Cabinet Weight (KG) | 5.6 | 5.6 | 5.6 |
| Brightness (CD/㎡) | 300~800 | 300~800 | 300~800 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | ≤ 500 | ≤ 500 | ≤ 400 |
| Avg. Power Consumption (W/㎡) | 100~180 | 100~300 | 100~180 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -10～+60 | -10～+60 | -10～+60 |
| Protection Grade | IP35 | IP35 | IP35 |

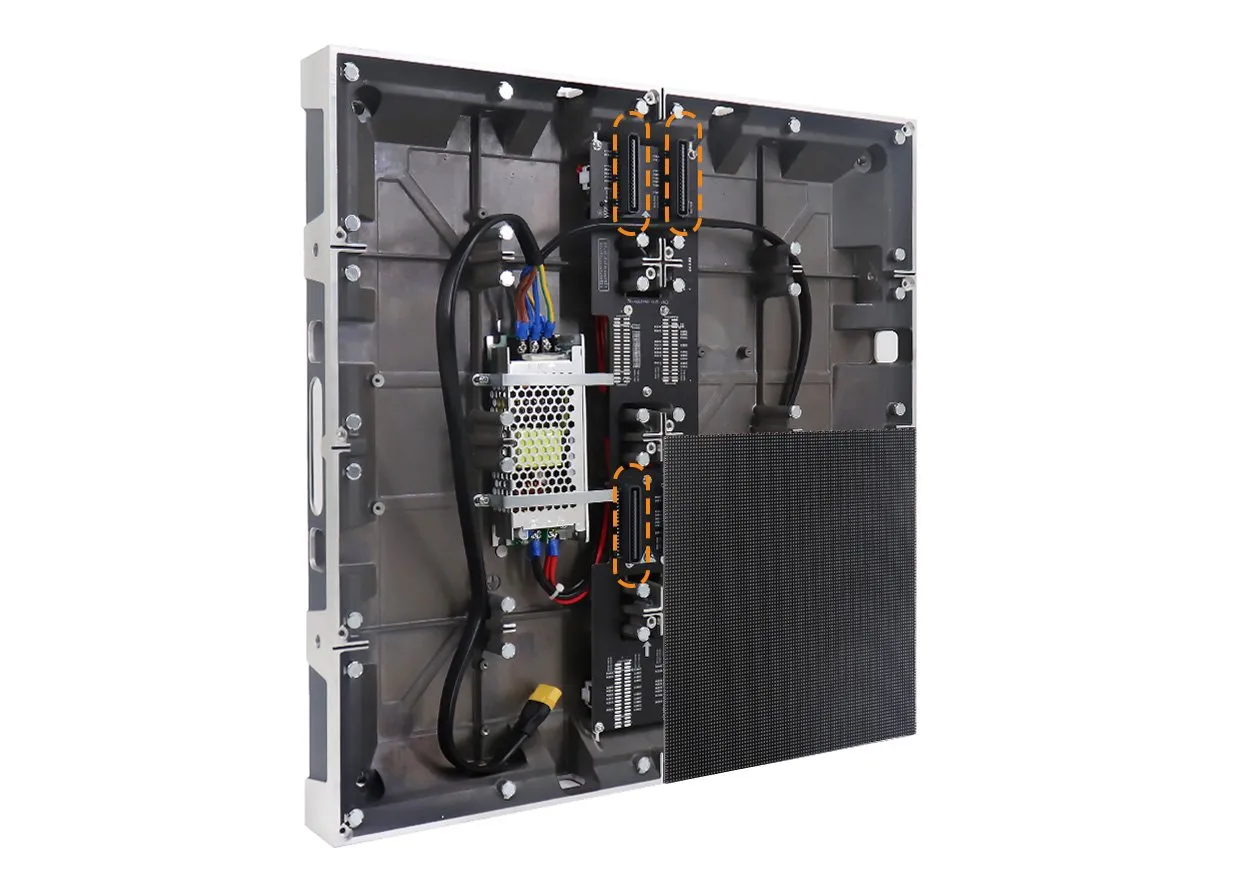

Front Service Desgin
Series indoor small-pitch LED screens provide front installation, which can be placed against the wall, and the maintenance is
convenient and quick. The hot-swappable front LED module, combined with the electric vacuum gripper, can be replaced by ordinary people.
Ultra-thin Cabinet
The thickness of series LED display is only 50mm, very thin and light,
and the weight is only 5.6kg, which is easy to install, assemble and disassemble.

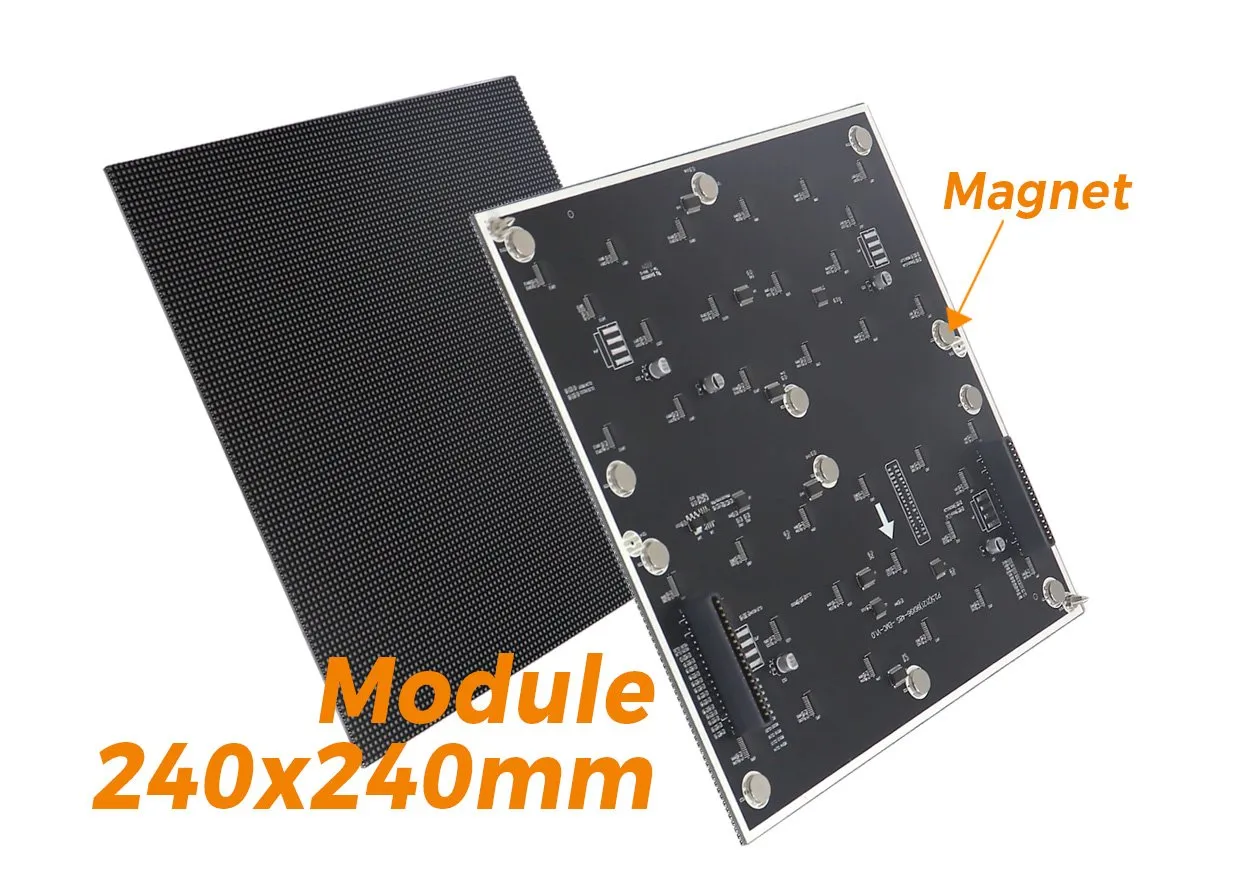

Wireless LED Module
LED module data and power input plug-and-play design,
no need for additional DC power lines and cables, easy to install, save trouble and effort.
High Quality Thin LED Panel
Series 1:1 ratio LED screen adopts high quality LED panel.
Front-maintenance lightweight modules enhance the visual effect of the space and its visual effects.
Excellent Display Experience
Seamless splicing design, fast locking, simple internal wiring, perfect cabinet splicing.
The LED display is seamless, with vivid images, clear video display, and gorgeous picture quality.
Wide Viewing Angle
Fine Pitch LED Display’s large viewing angle allows you get the full view no matter where you’re sitting,
while UHD picture and video content assures you an immersive viewing experience.
Application Scenario
LED indoor HD LED display screen has a wide range of uses, it can be used in many fields such as business, entertainment, education, etc.
 Monitoring Room |
 Studio |
 Hotel |
 Exhibition Hall |
