Description
HH3DiP1 Naked Eye 3D LED Poster Display
HH3DiP1 naked eye 3D LED poster display, innovative four-sided 360°display design, presents a realistic three-dimensional visual effect, you can experience the shocking naked eye 3D picture. The base is equipped with universal wheels for easy and flexible movement, suitable for digital signage or LED billboards.
Four-Sided Display
Naked Eye 3D Effect
The four screens of HH3DiP1 are connected by flexible LED modules to achieve seamless corners, and combined with a 170° viewing angle, a spatial visual display is constructed. No glasses are required to achieve a naked eye 3D stereoscopic effect

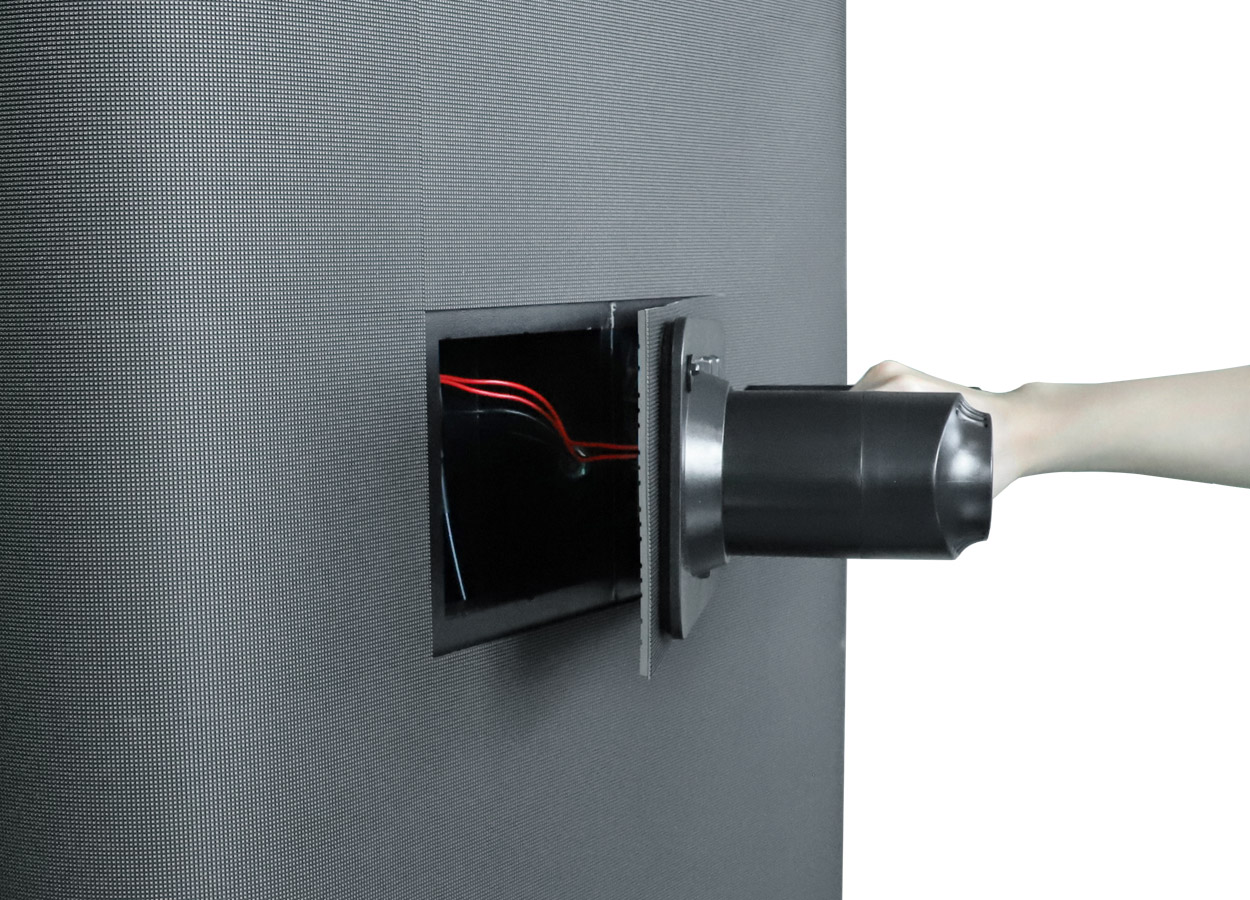

Front Service
HH3DiP1 display adopts a front maintenance design, and all components can be easily maintained and replaced from the front.

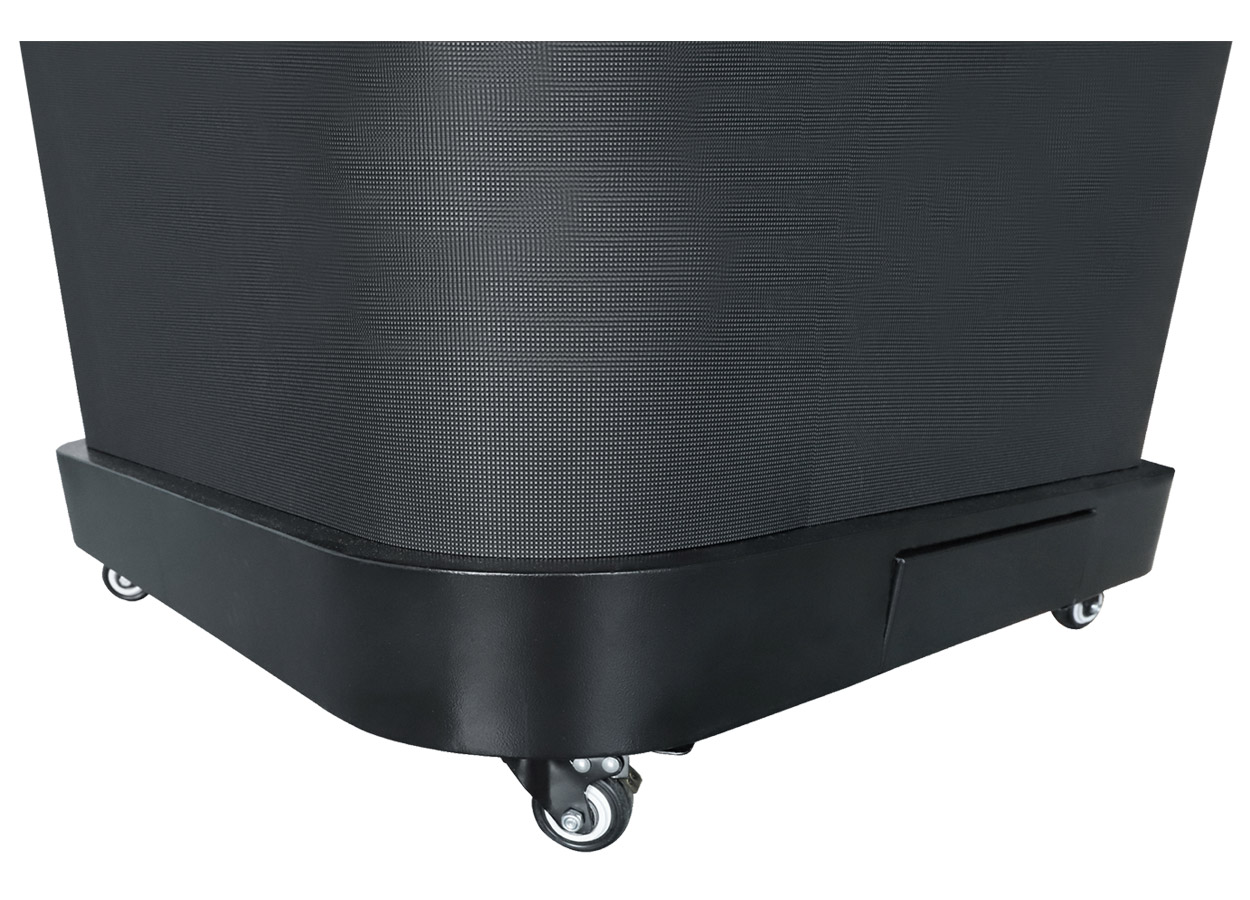

Easy to Move
The base of HH3DiP1 display is equipped with high-quality silent universal wheels, which support flexible movement and rapid deployment.
Smart Cloud Management
HH3DiP1 supports four-screen independent signal input, free switching between single screen and four screens, and adapts to various playback modes. It supports remote monitoring, timed power on and off, and wireless control of mobile phones, making it easy to realize intelligent playback and content management.
Excellent Visual Performance
HH3DiP1 adopts flexible LED modules, supports HDR technology, 10000:1 high contrast ratio and 16-bit high grayscale, presenting delicate and smooth pictures and significantly improving visual expression.

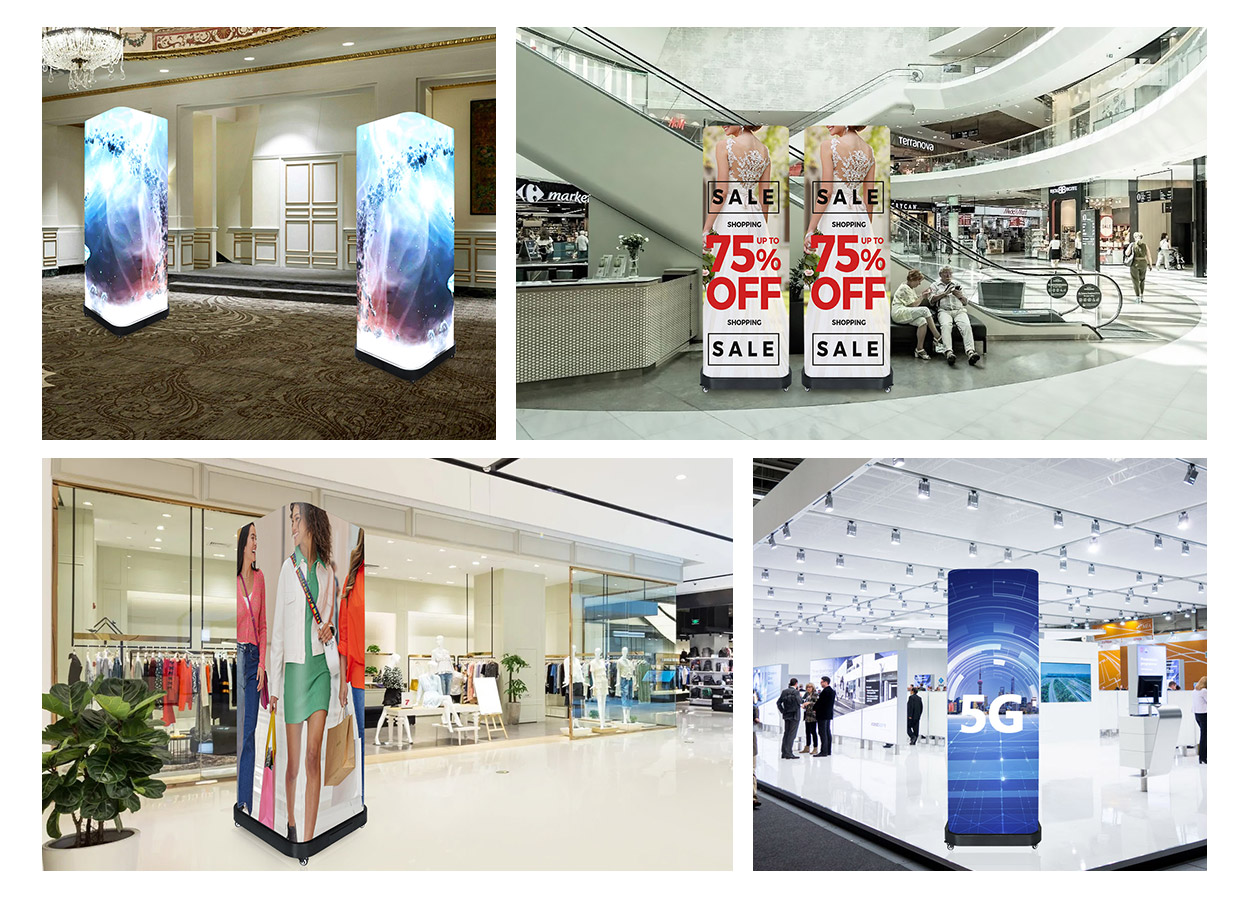

Application Scenarios
Naked eye 3D LED poster display is suitable for a variety of scenarios, including shopping mall entrance advertising, exhibition display, theater lobby and digital signage, etc. It perfectly presents shocking visual effects and helps brands attract more attention.
HH3DiP1 Indoor 3D LED Poster Display Series Parameter
| Pixel Pitch (mm) | P1.25 | P1.56 | P1.86 |
|---|---|---|---|
| Model | HH3DiP1-P1.25 | HH3DiP1-P.56 | HH3DiP1-P1.86 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1212 |
| Density (Pixels/㎡) | 640,000 | 406,406 | 144,453 |
| Module Resolution (Pixel) | 256×128 | 204×102 | 172×86 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/64 | 1/51 | 1/43 |
| Cabinet Size (mm) | 680x1920x680 | 680x1920x680 | 680x1920x680 |
| Cabinet Weight (KG) | 125 | 125 | 125 |
| Brightness (CD/㎡) | ≥600 | ≥600 | ≥600 |
| Viewing Angle (°) | 170 | 170 | 170 |
| Gray Grade (Bits) | 16 | 16 | 16 |
| Operation Power | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
| Max. Power Consumption (W/㎡) | 2400 | 2400 | 2400 |
| Average power consumption(W/㎡) | 800 | 800 | 800 |
| Frame Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Working Humidity(RH) | 10%~85% | 10%~85% | 10%~85% |
| Protecting Grade | IP31 | IP31 | IP31 |
