HH1600SP 1600×900mm Stadium Perimeter LED Display
HH1600SP series are professional stadium perimeter LED display. 90-degree upright support frame, soft mask protection, high-protection chassis panel design, ultra-low heat and power consumption, in line with the stadium perimeter LED screen requirements of FIFA and UEFA.
Front and Rear Service
Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and disassemble easily and quickly.
Soft mask protection
Soft mask protection, athletes and LED screen are perfectly protected.

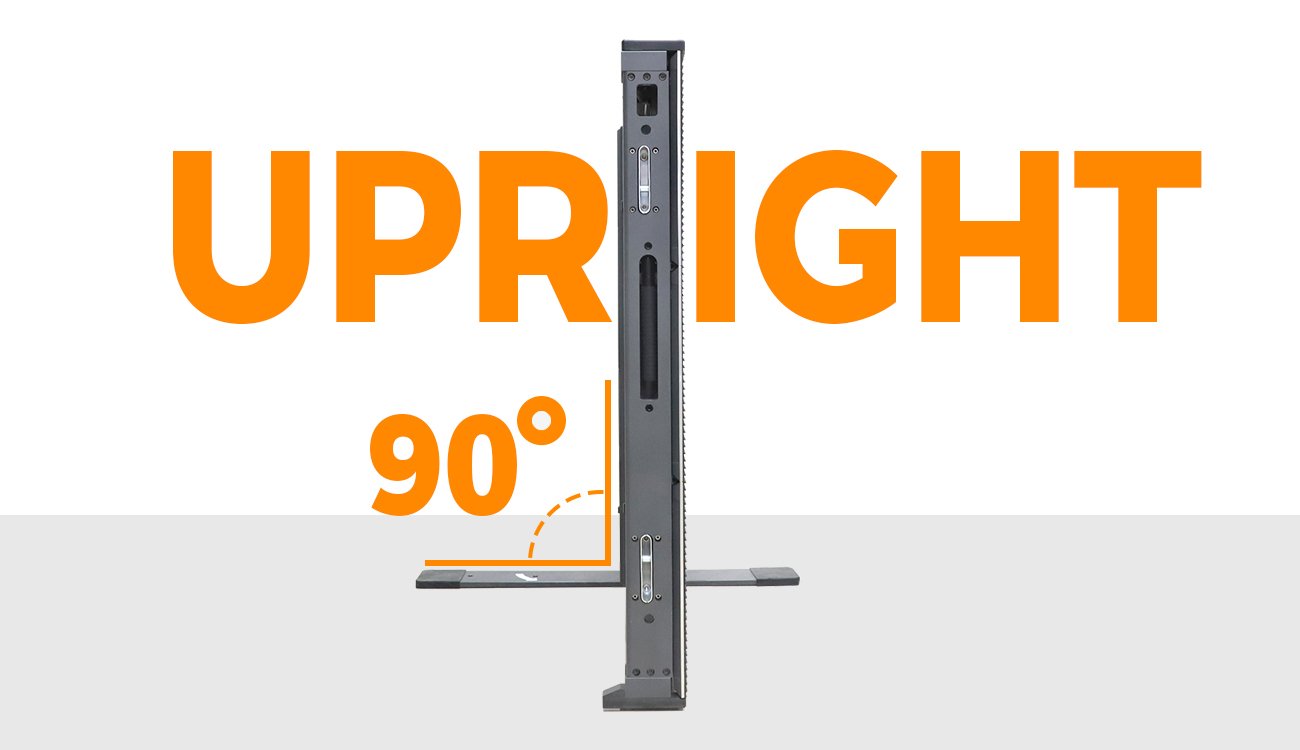

90 Degrees Upright
The new court base design, 90-degree upright non-adjustable support frame, ensures the audience’s viewing angle
Energy saving
Aluminum chassis, long service life, good heat dissipation performance, more energy-saving than traditional screens, greatly reducing the operating cost of the screen.

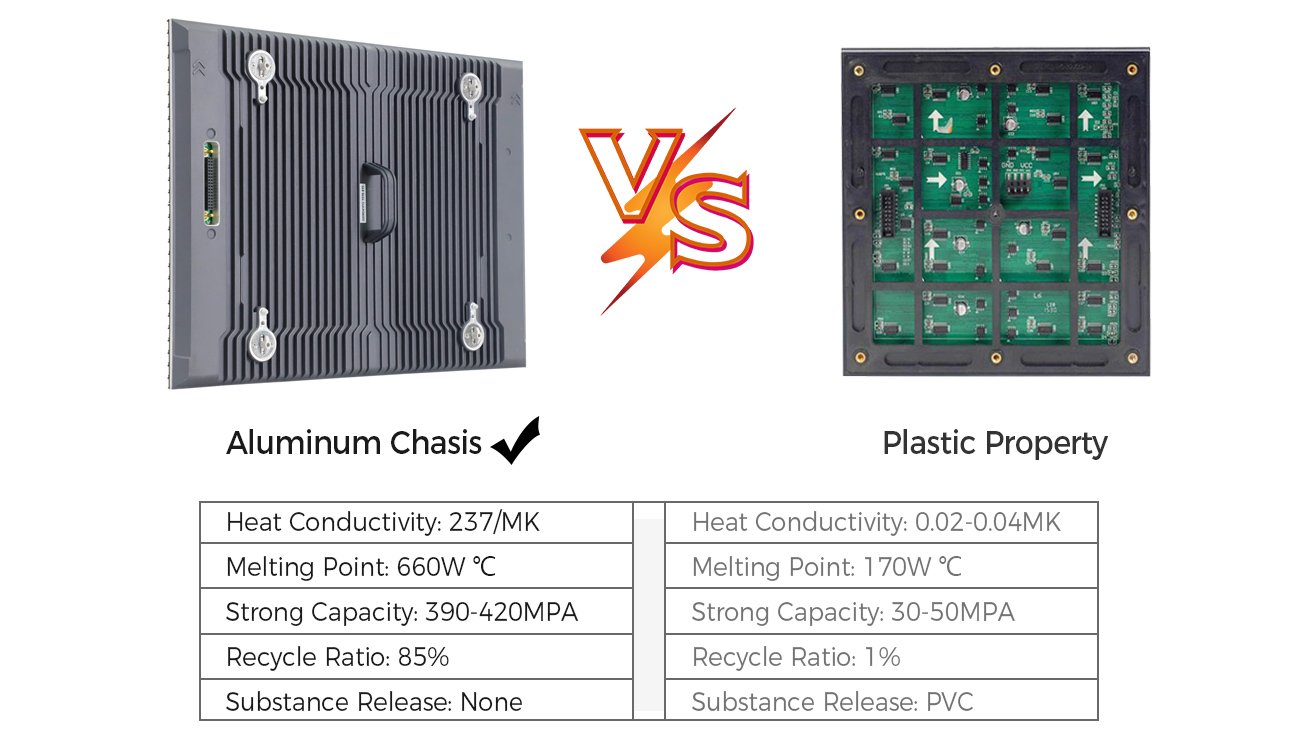

400*300mm Aluminum LED Panel
HH1600SP Series LED display adopts Aluminum Chasis design for panel. Aluminum chasis adopt edge lock without screwing design. full sealed design, to protect its internal components.

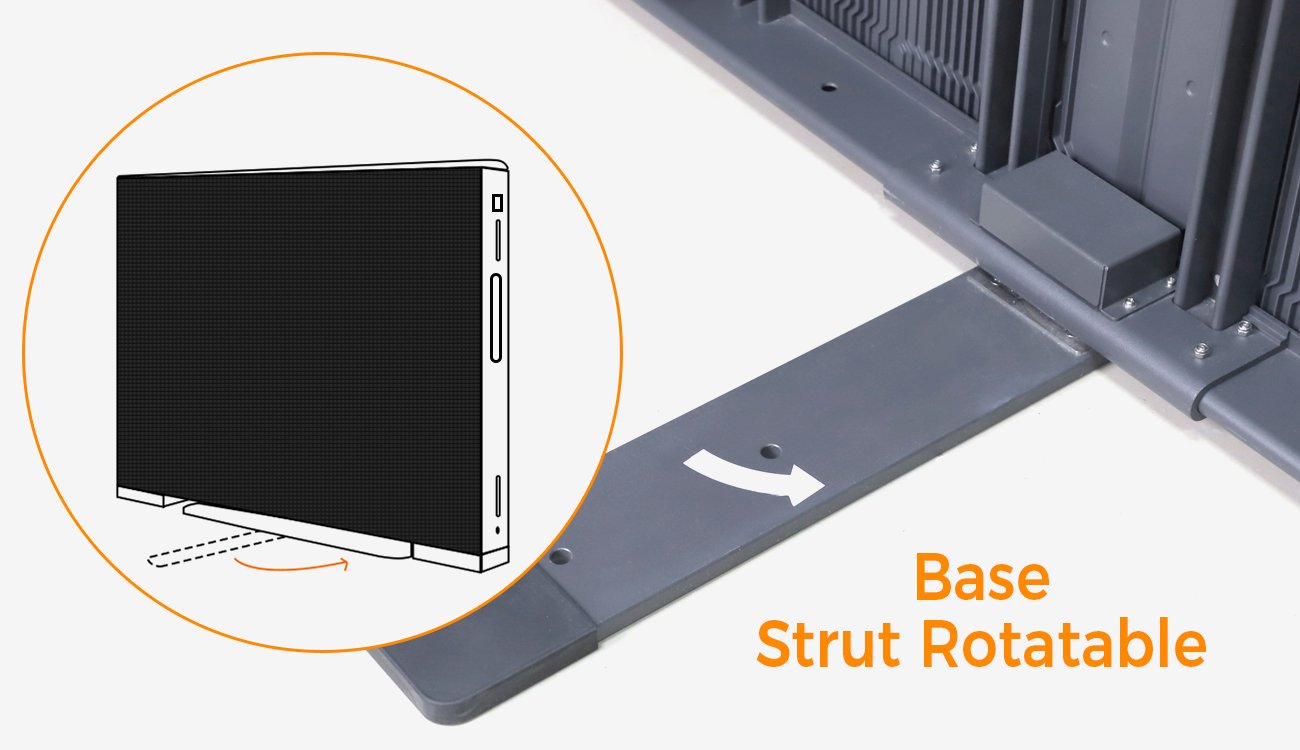

Support Frame Rotatable
The support frame of the cabinet body can be hidden after being rotated.

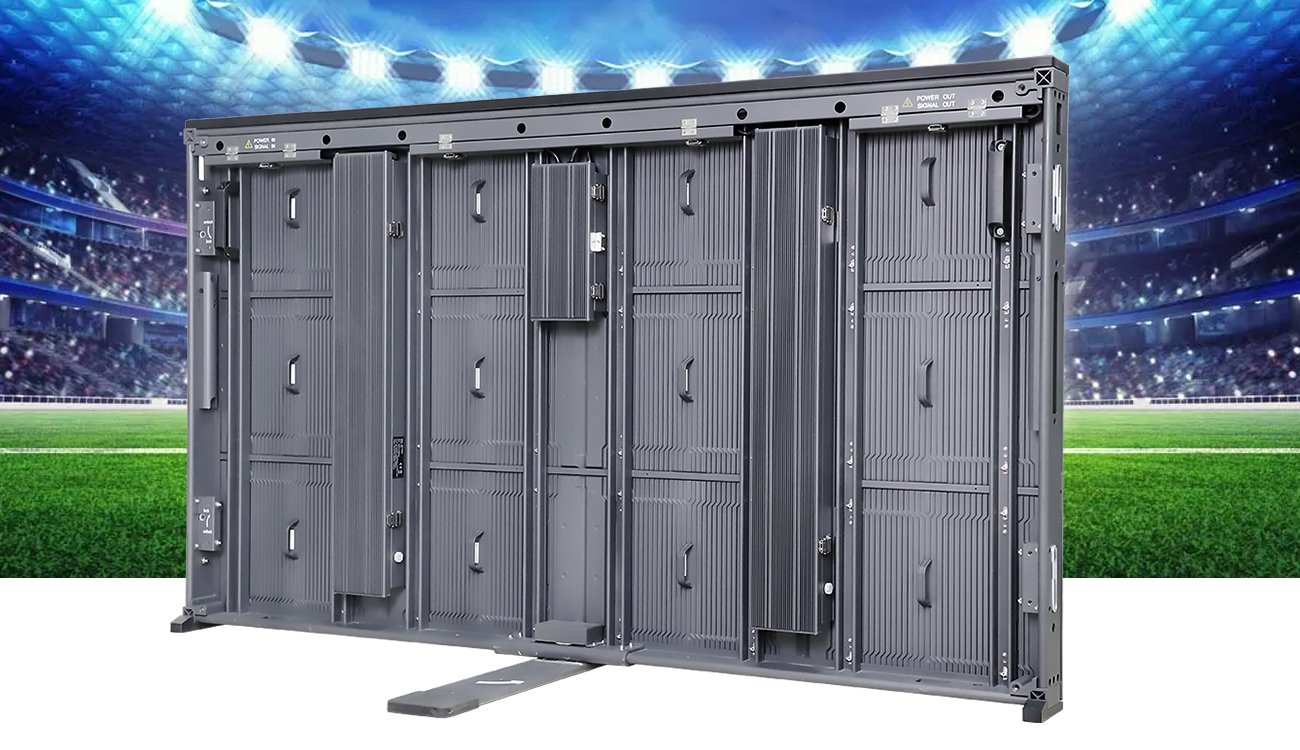

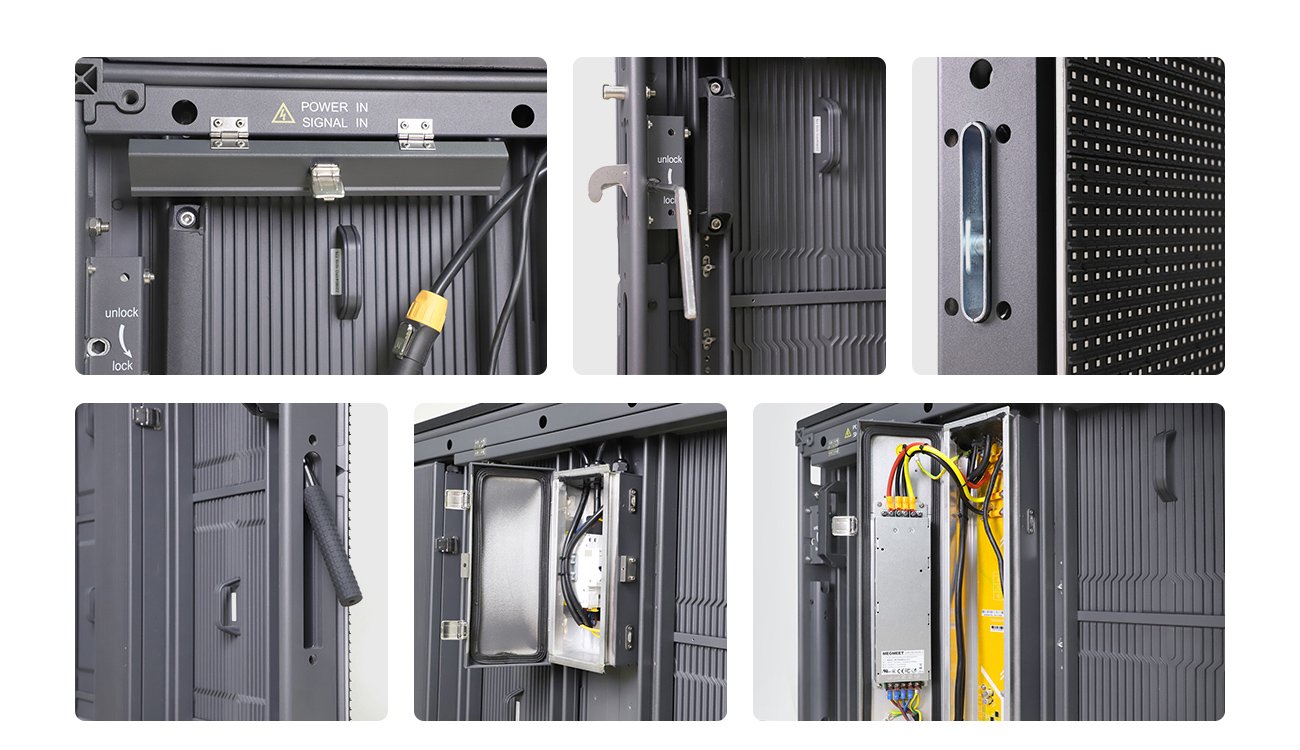

Delicated Cabinet Design
HH1600SP series LED display screen is compact in structure, easy to install without gaps.The humanized handle design makes it easier for you to move the cabinet.
Outdoor Stadium Perimeter LED Display Screen HH1600SP Series Parameter
| Pixel Pitch | P6.67 | P8.33 | P10 |
|---|---|---|---|
| Model | HH1600SP-P6.67 | HH1600SP-P8.33 | HH1600SP-P10 |
| Pixel Configuration | SMD2727 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 22,500 | 14,400 | 10,000 |
| Module Resolution (Pixel) | 60×45 | 48×36 | 40×30 |
| Module Size (mm) | 400×300 | 400×300 | 400×300 |
| Driving Mode (Duty) | 1/6 | 1/4 | 1/3 |
| Cabinet Size (mm) | 1600×900 | 1600×900 | 1600×900 |
| Cabinet Weight (KG) | ≈52 | ≈52 | ≈52 |
| Brightness (CD/㎡) | 6500 | 6500 | 6500 |
| Viewing Angle (°) | 170(H),110(V) | 170(H),110(V) | 170(H),110(V) |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 630 | 550 | 550 |
| Avg. Power Consumption (W/㎡) | 250 | 200 | 200 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Protecting Grade | IP66 | IP66 | IP66 |
