Description

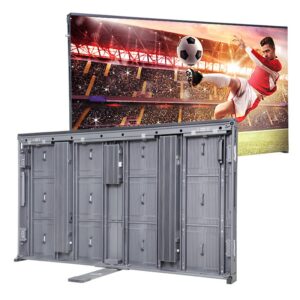

HH960SP4 Outdoor Perimeter Stadium LED Screen
HH960SP4 stadium LED screen has IP65 waterproof rating, rear maintenance design, adjustable bracket and easy installation. It is very suitable for installation around the sports field, so it is also called sports LED screen.

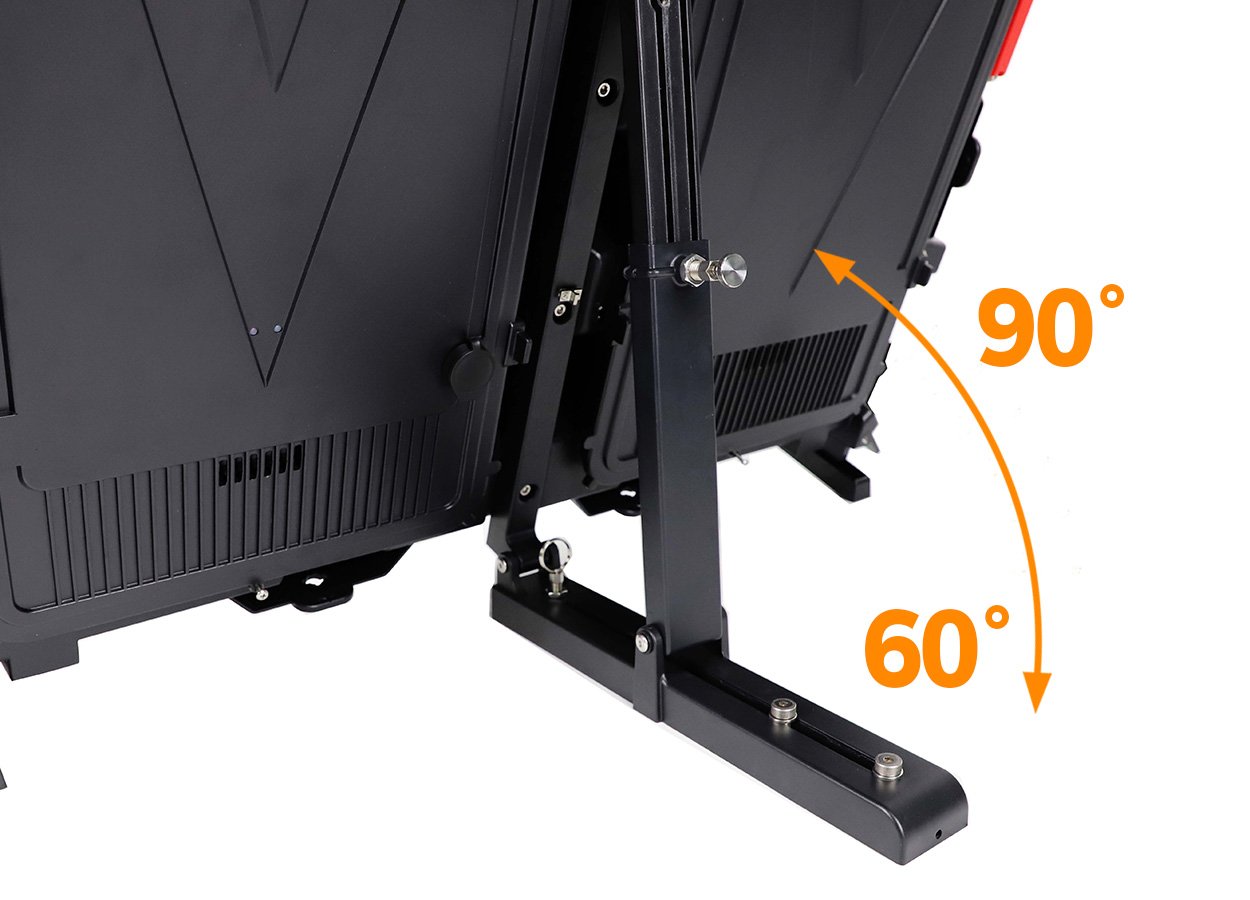

Independent Support Structure
HH960SP4 stadium LED screen is equipped with a well-designed support structure that can withstand front and rear impacts to ensure firmness and stability. The support angle of the cabinet can be easily adjusted to suit specific site conditions.

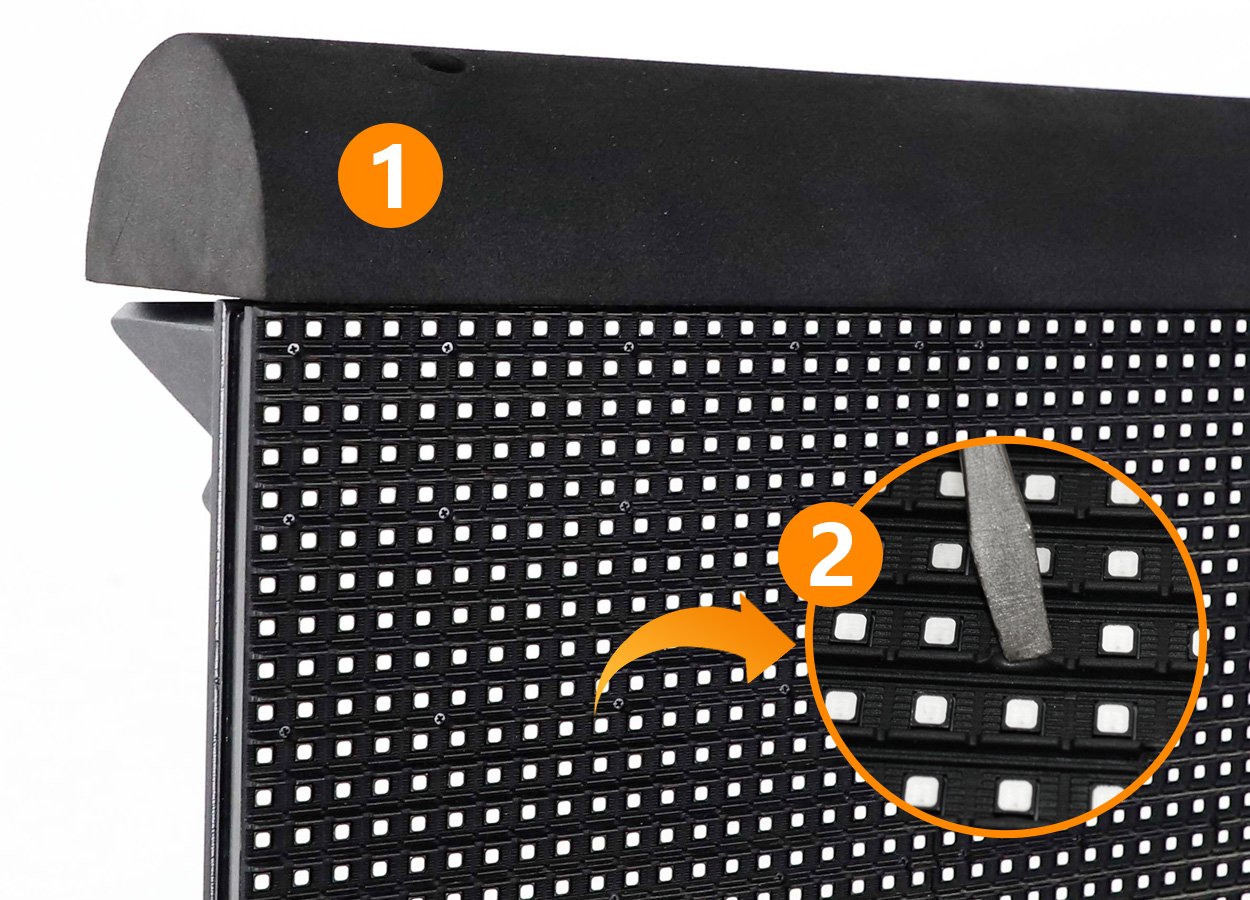

Impact-resistant Design
HH960SP4 LED display is equipped with a soft mask and rubber cover to effectively protect athletes from potential injuries during competition, ensuring both safety and user experience.

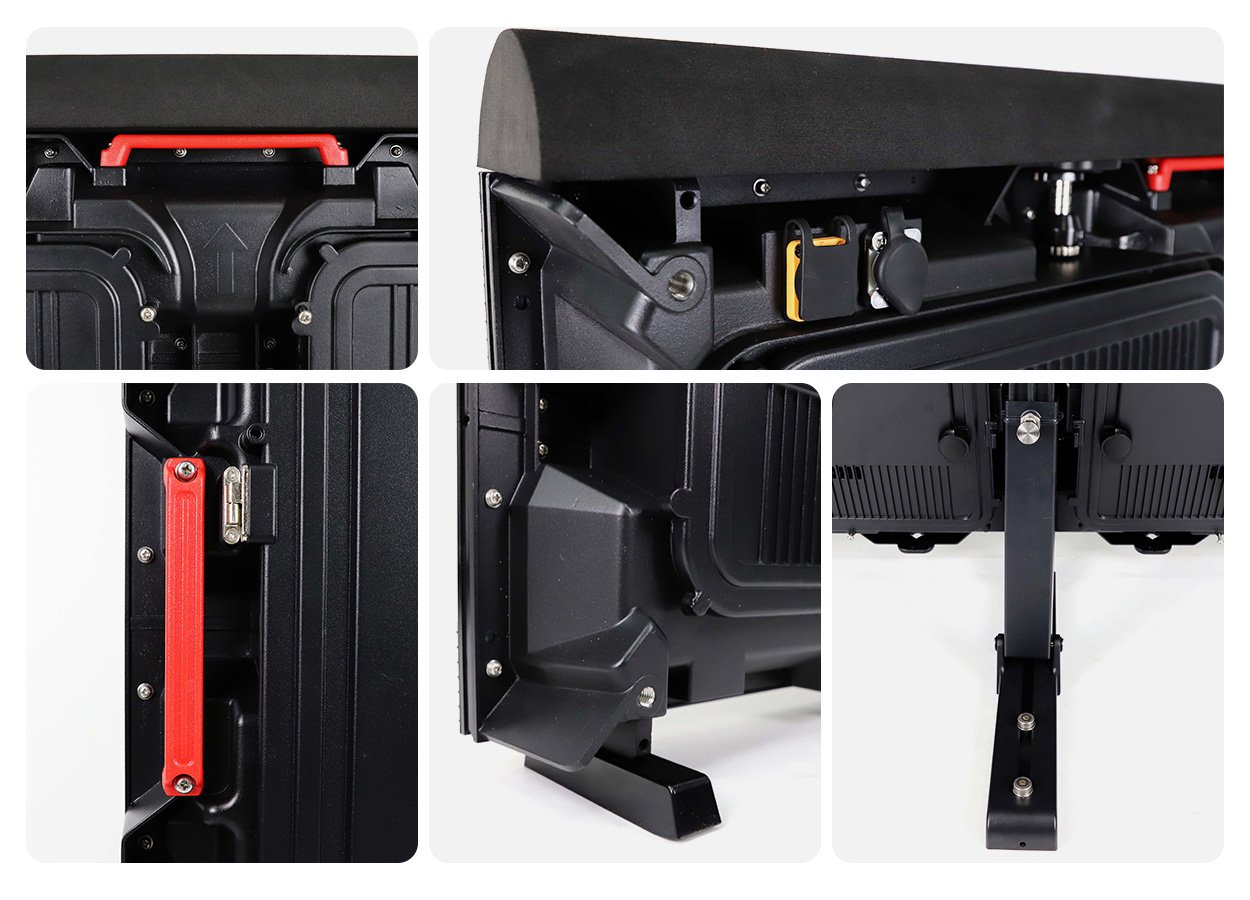

Cabinet Details
HH960SP4 LED display has a compact structure and is easy to install seamlessly. Its humanized handle design makes the box easier to move and improves the efficiency of installation and maintenance.
Openable Back Cover
The back cover of HH960SP4 sports LED display is designed to be opened quickly for easy maintenance, greatly improving the efficiency of daily maintenance and repairs.

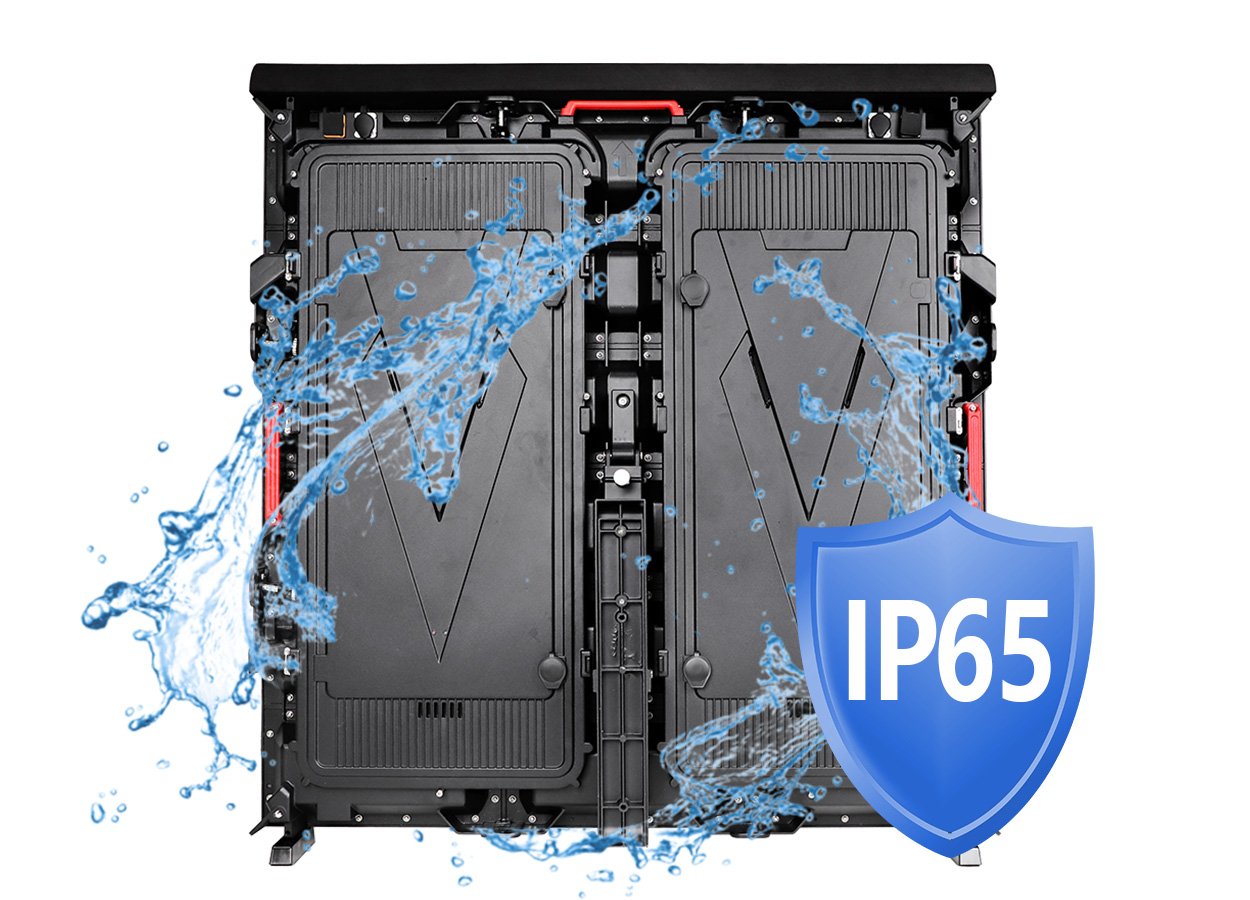

IP65 Waterproof
The cabinet of HH960SP4 LED display adopts a fully sealed design, with dust and water-proof functions and a protection level of up to IP65, which can easily cope with various complex outdoor environments.

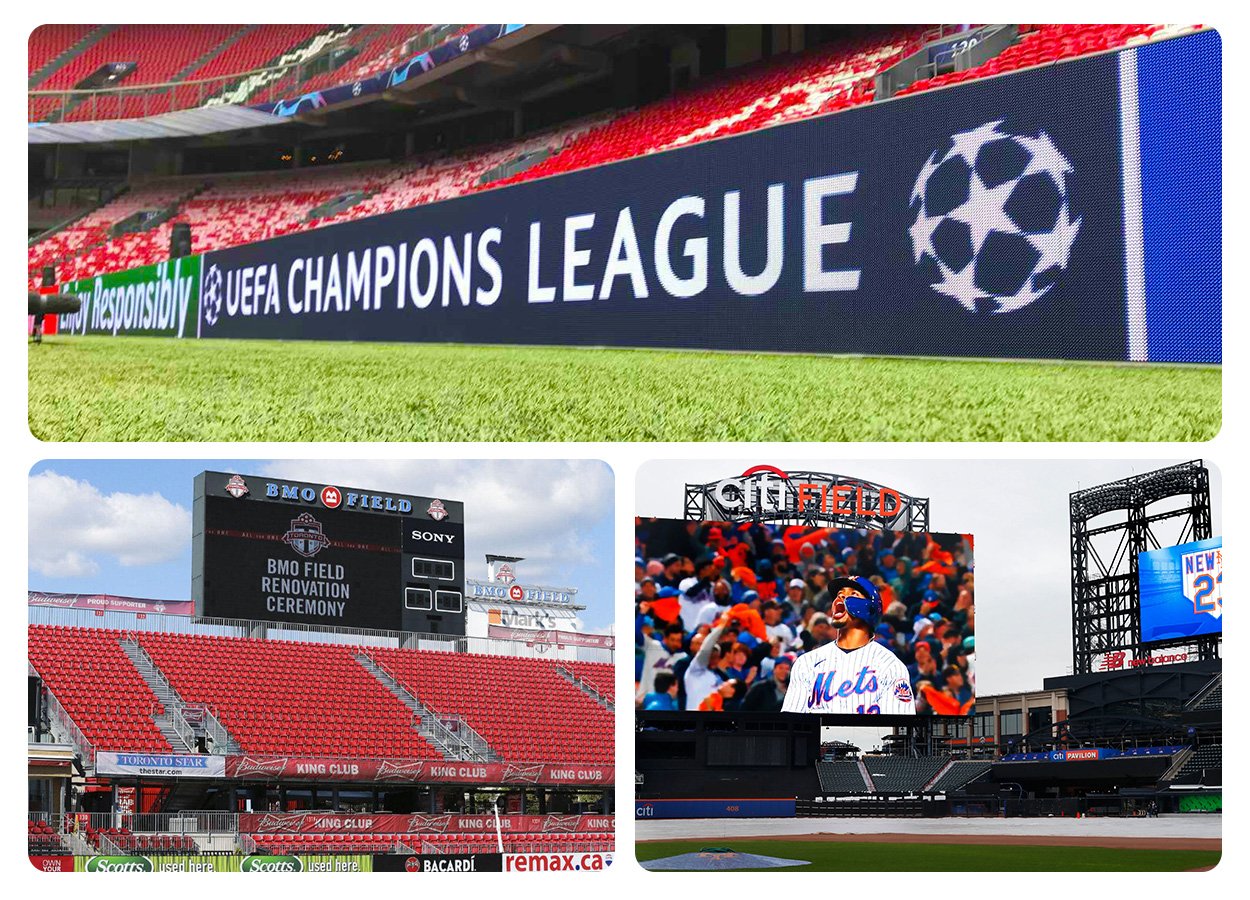

Customized for the Stadium
HH960SP4 stadium LED display is specially designed for installation around the stadium. It can be installed with a back frame or suspended, providing a variety of installation methods to meet the needs of different scenarios.
Superb Display Effect
HH960SP4 sports LED screen performs well in sports commercial display applications. Its higher brightness and refresh rate present users with more realistic and vivid visual effects, greatly improving the viewing experience.
HH960SP4 Outdoor Perimeter Stadium LED Screen Parameter
| Pixel Pitch | P5 SMD1921 | P5 SMD2727 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|
| Model | HH960SP4-P5 | HH960SP4-P5 | HH960SP4-P6.67 | HH960SP4-P8 | HH960SP4-P10 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 40,000 | 40,000 | 22,478 | 15,625 | 10,000 |
| Module Resolution (Pixel) | 64×32 | 64×32 | 48×24 | 40×20 | 32×16 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/8 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 26 | 26 | 26 | 26 | 26 |
| Brightness (CD/㎡) | 5500 | 6000 | 6000 | 5500 | 5800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 892 | 892 | 892 | 600 | 850 |
| Avg. Power Consumption (W/㎡) | 298 | 298 | 298 | 200 | 285 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protecting Grade | IP65(front),IP54(rear) | IP65(front),IP54(rear) | IP65(front),IP54(rear) | IP65(front),IP54(rear) | IP65IP65(front),IP54(rear) |
